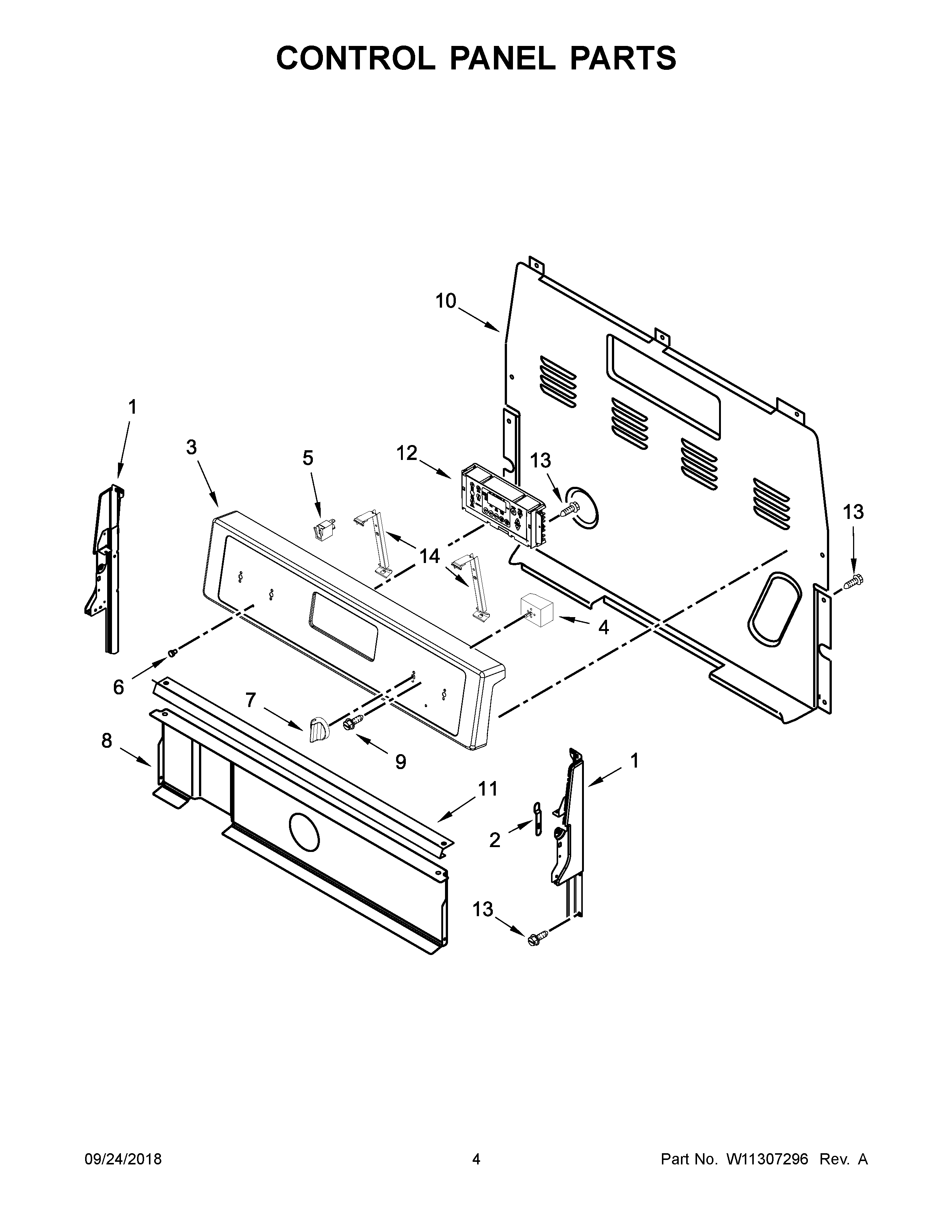

WFE515S0ES2 03 – CONTROL PANEL PARTS

WFE515S0ES2 03 – CONTROL PANEL PARTS

Written by

in

WFE515S0ES2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3W11251222 Whirlpool Control Panel
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
4AWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10836470 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11122543-includeCORE Whirlpool W11122543 Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
