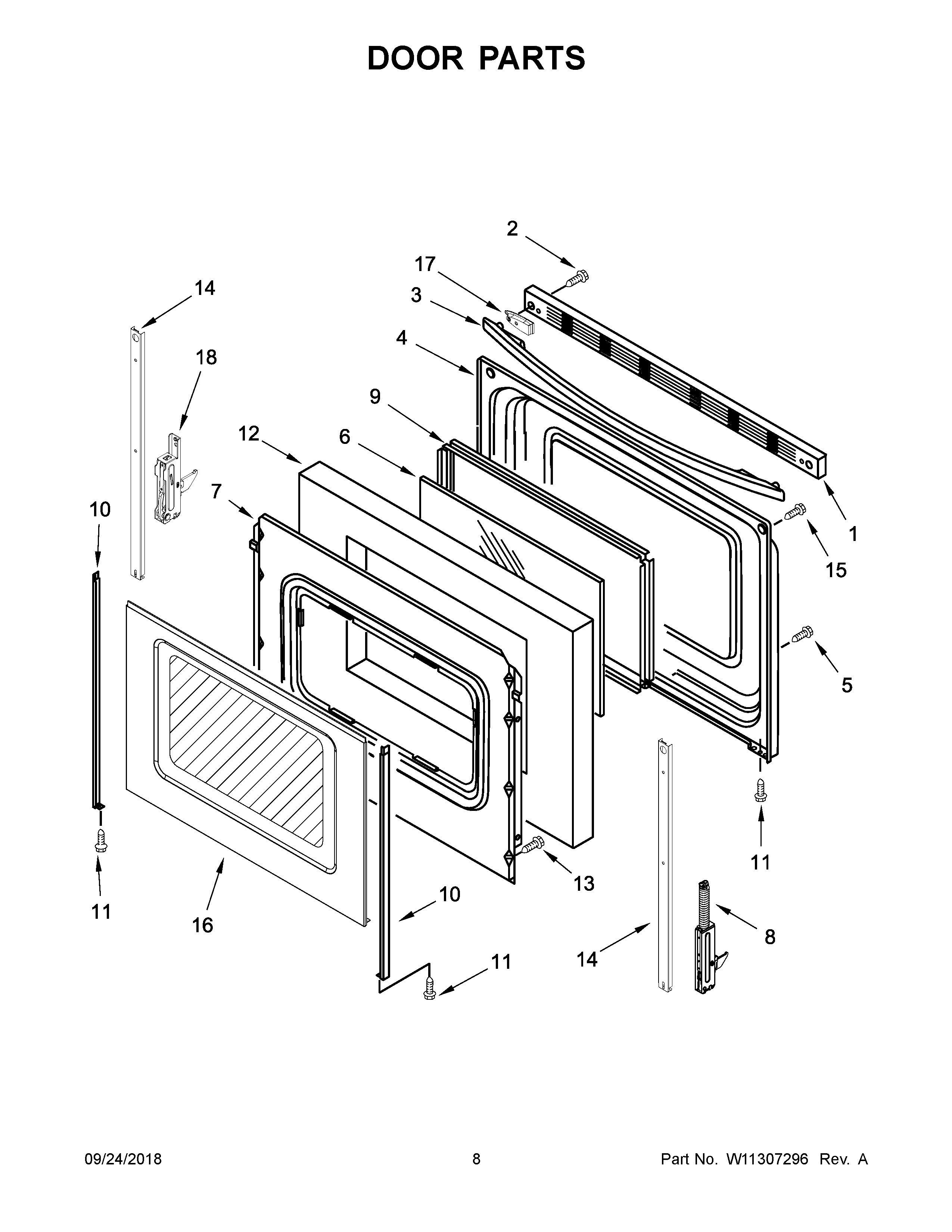

WFE515S0ES2 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2W10896982 Whirlpool Compactor Screw
3WPW10618239 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
9WPW10316950 Whirlpool Window Frame
10AW10761014 Whirlpool Right Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11WP355214 Whirlpool Screw
12WPW10278991 Whirlpool Insulation
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16WPW10330077 Whirlpool Door Glass
17WPW10410341 Whirlpool Spacer
18WPW10299227 Whirlpool Range Door Hinge
