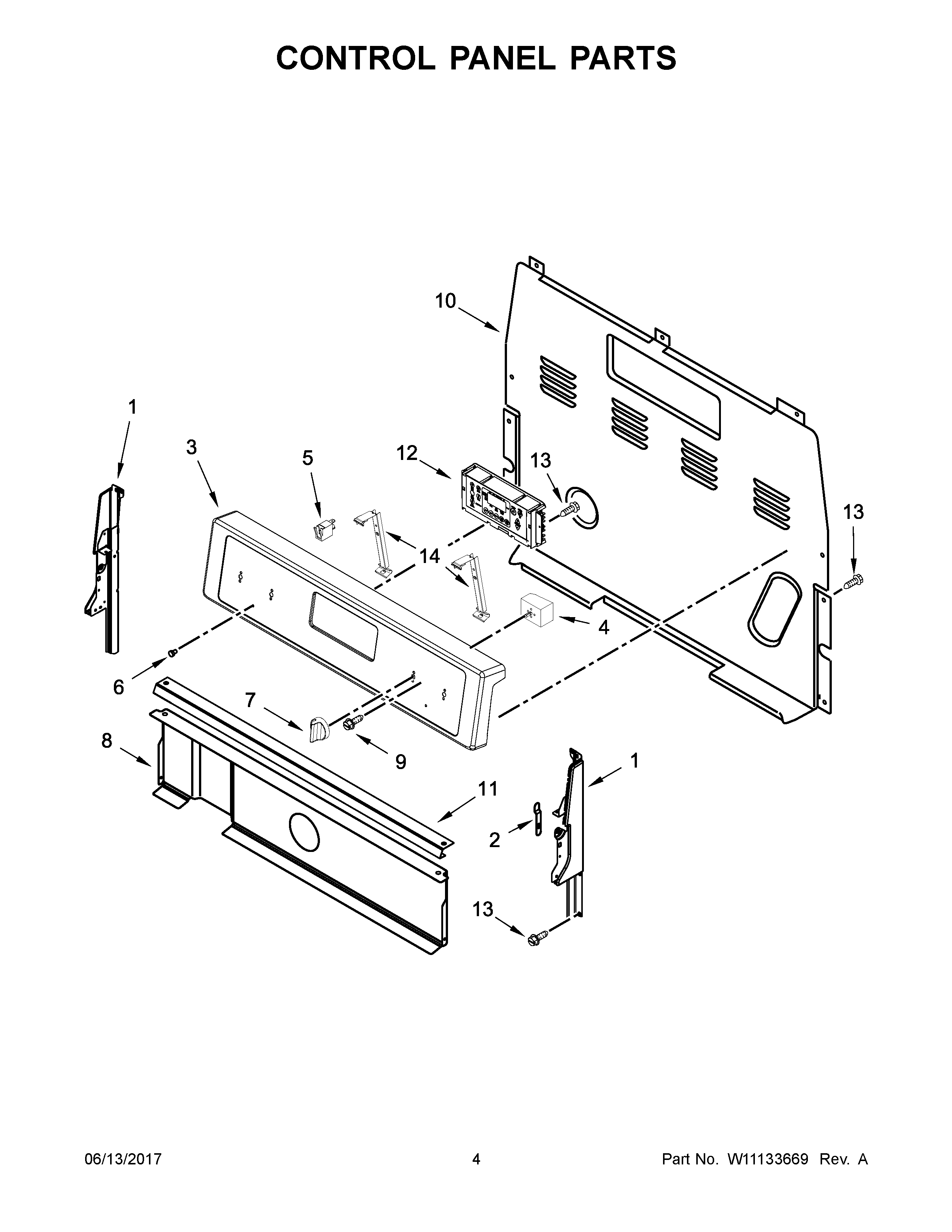

WFE515S0ET1 03 – CONTROL PANEL PARTS

Products

Position	Product
1E	W11230612 Whirlpool Panel End Cap
1D	W11230611 Whirlpool Panel Endcap
1B	W11219664 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
1A	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	3196200 Whirlpool Clip
3C	W11251222 Whirlpool Control Panel
3	W11231942 Whirlpool Control Panel
3A	W11231943 Whirlpool Control Panel
3B	PANEL, BACKGUARD (BISCUIT)
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7B	W10676215 Whirlpool Knob
7A	W10836470 Whirlpool Knob Assembly
7	W10853029 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11122546-includeCORE Whirlpool W11122546 Range Electronic Control Board + Core
12B	W11134276-includeCORE Whirlpool W11134276 Washer Electronic Control Board
12C	W11122543-includeCORE Whirlpool W11122543 Electronic Control Board + Core
12A	W11122551-includeCORE Whirlpool W11122551 Refrigerator Electronic Control Board
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
