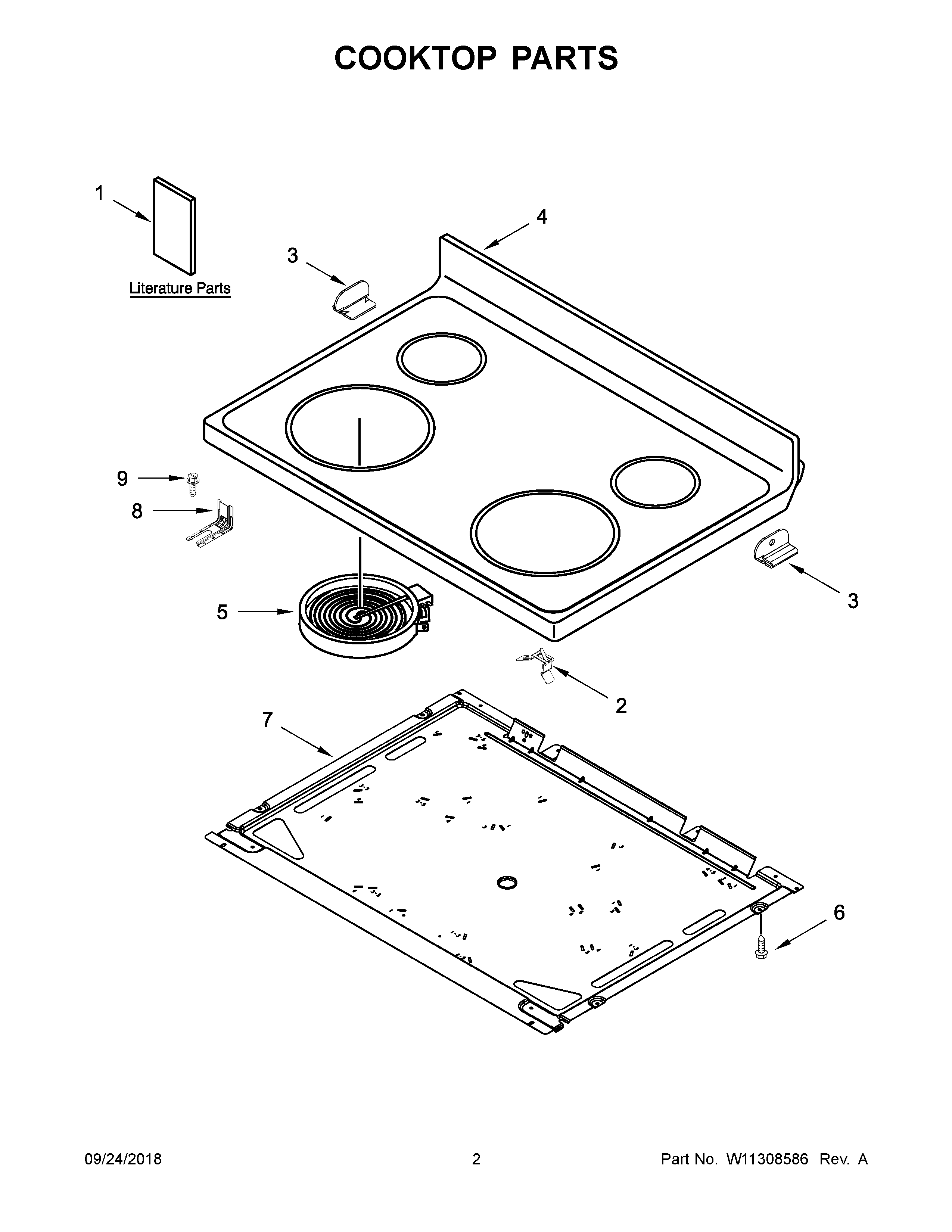

WFE515S0ET2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172528 Whirlpool Harness Wire
NI	W11134602 Whirlpool Wire Harness
NI	W11134601 Whirlpool Wire Harness
NI	W11172524 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	W11219898 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE, ENGLISH
1B	TECH SHEET (ENGLISH)
2	WPW10225448 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4A	W10472020 Whirlpool Cooktop
4	W10245805 Whirlpool Range Black Glass Cooktop
4B	W10472029 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5A	ELMNT-SURF
5B	W11047722 Whirlpool Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
