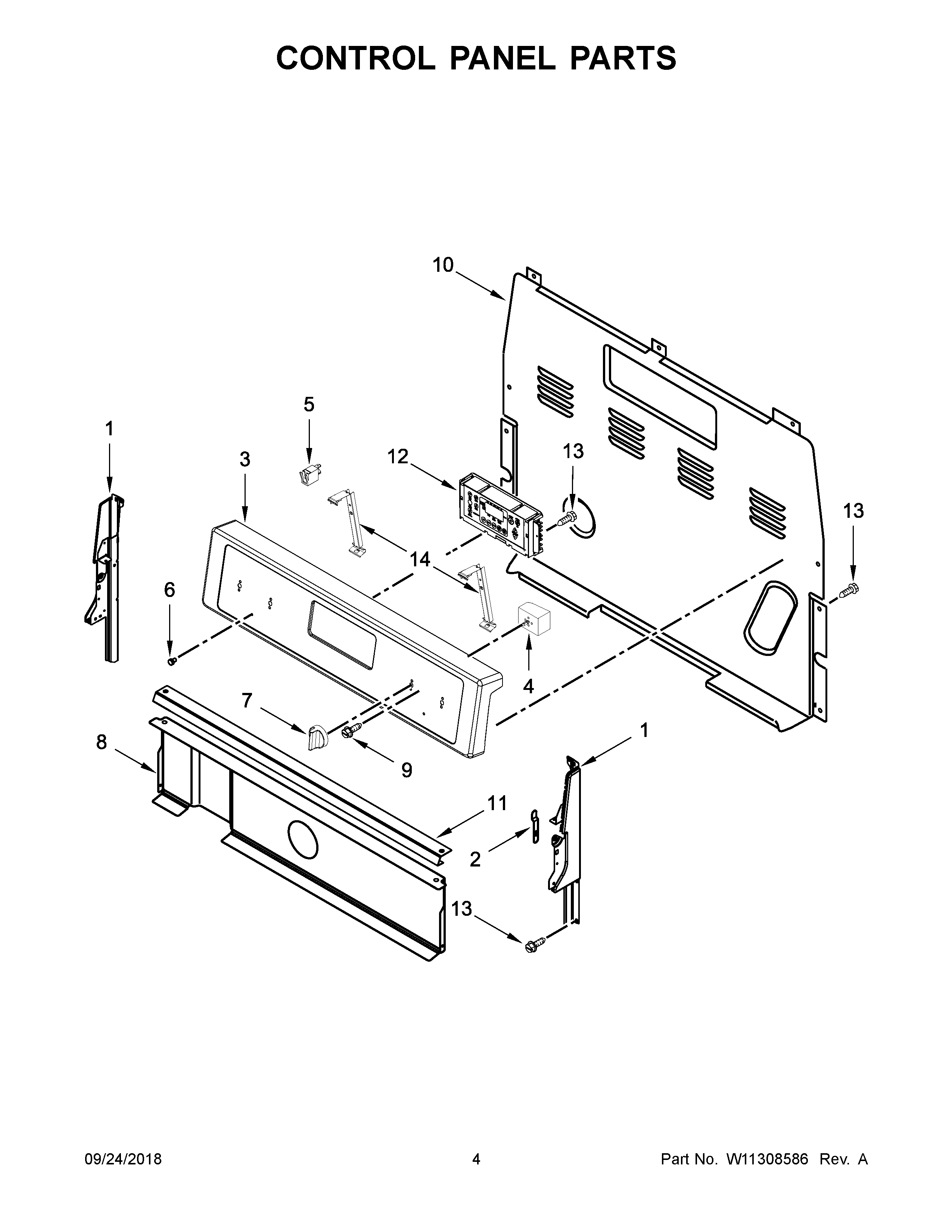

WFE515S0ET2 03 – CONTROL PANEL PARTS

Products

Position	Product
1E	W11230612 Whirlpool Panel End Cap
1C	W11219370 Whirlpool Endcap Panel
1D	W11230611 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
1B	W11219365 Whirlpool Panel Endcap
2	3196200 Whirlpool Clip
3B	CONSOLE, ASSEMBLY (BISCUIT)
3A	W11231942 Whirlpool Control Panel
3	W11231943 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7B	W10676215 Whirlpool Knob
7A	W10853029 Whirlpool Knob
7	W10836470 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12B	W11134276-includeCORE Whirlpool W11134276 Washer Electronic Control Board
12	W11122551-includeCORE Whirlpool W11122551 Refrigerator Electronic Control Board
12A	W11122546-includeCORE Whirlpool W11122546 Range Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
