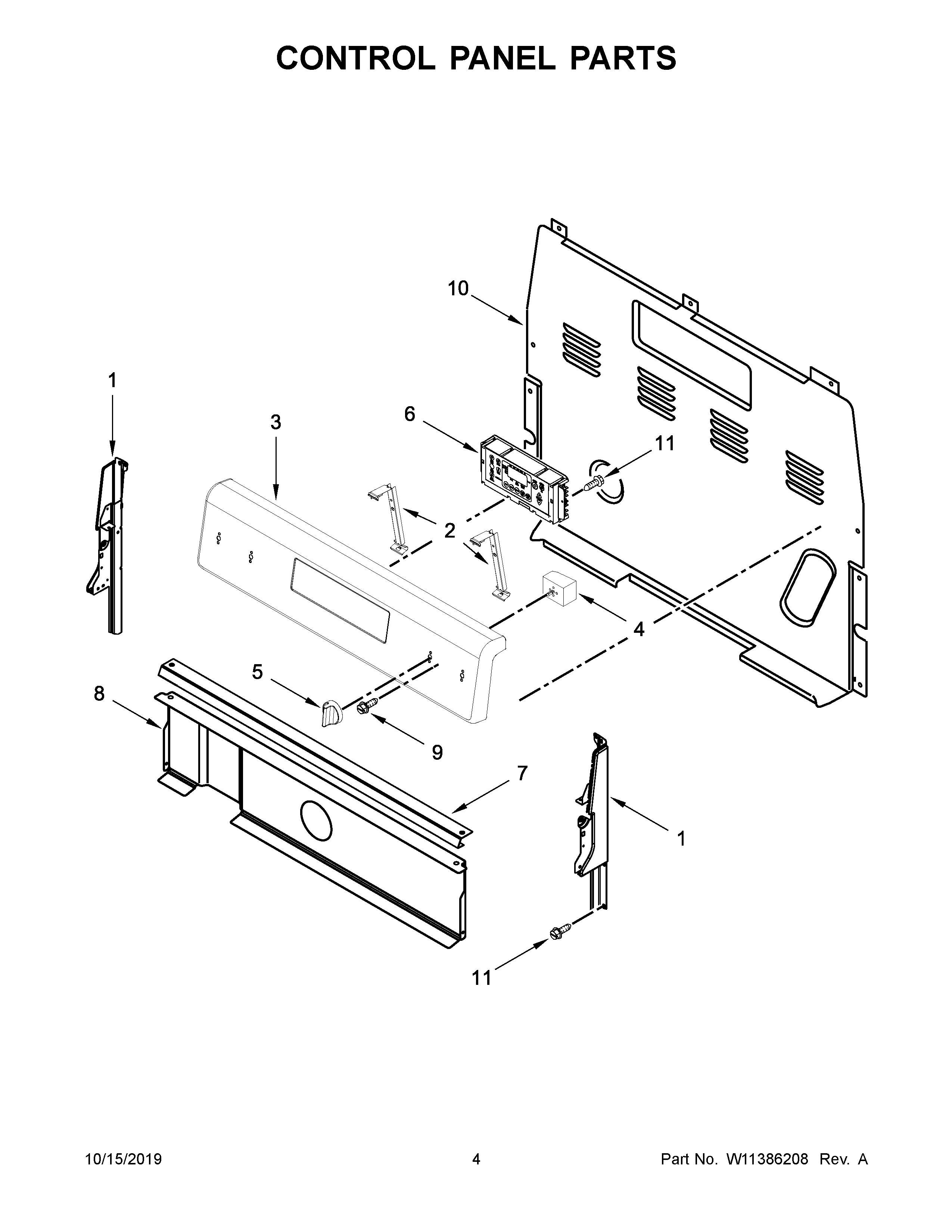

WFE515S0JS0 03 – CONTROL PANEL PARTS

WFE515S0JS0 03 – CONTROL PANEL PARTS

Written by

in

WFE515S0JS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3W11180283 Whirlpool Control Panel Assembly
4BWP3149400 Whirlpool Oven Infinite Switch
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5W11158169 Whirlpool Knob
6W11567348 Whirlpool Control Board + Core
7W10525121 Whirlpool Control Bracket
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11SCREW
