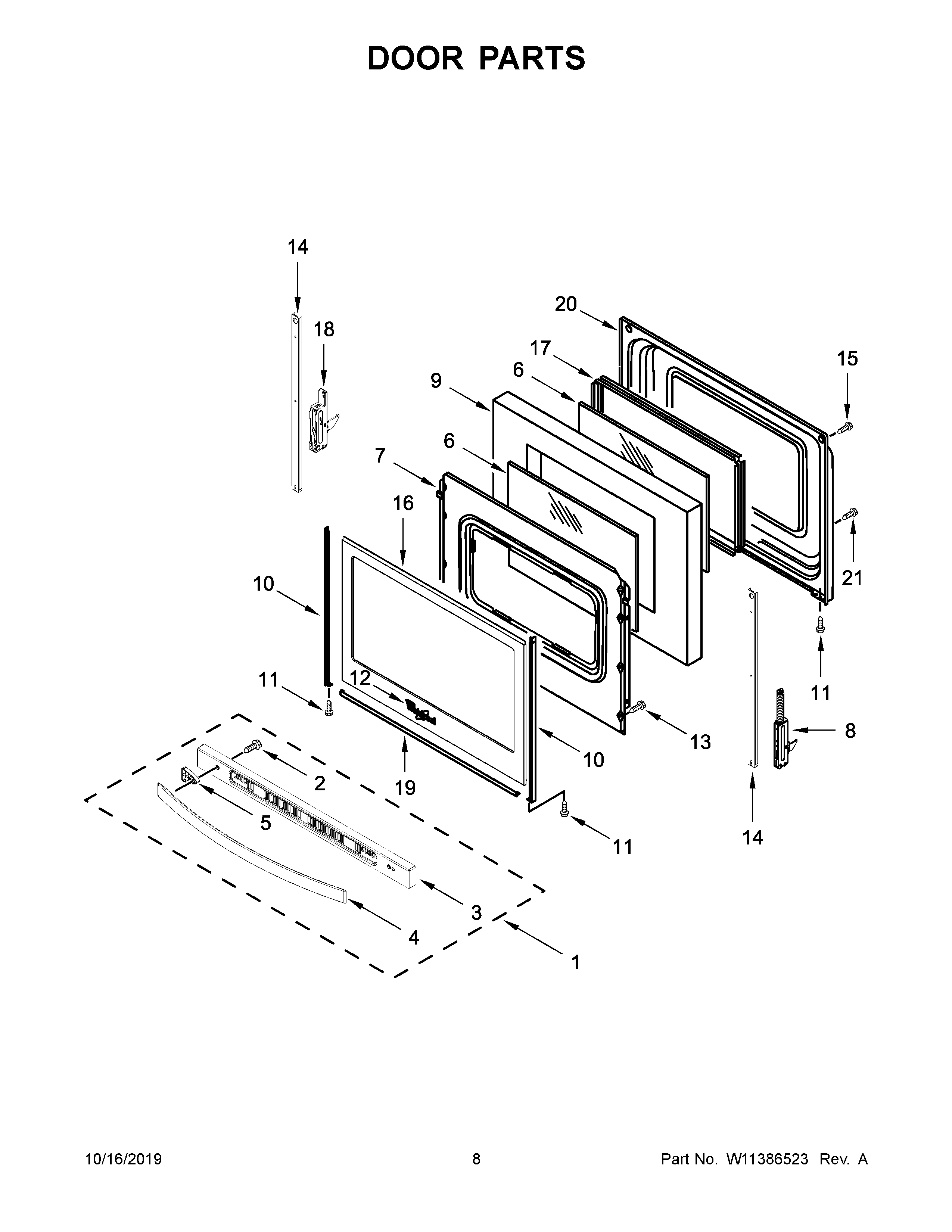

WFE515S0JW0 05 – DOOR PARTS

Products

PositionProduct
1AW11590861 Whirlpool Door Handle
1W11553213 Whirlpool Door Handle
2W10831019 Whirlpool Stove Door Screw
3AW10817433 Whirlpool Vent Trim
3TRIM-VENT
4W11107394 Whirlpool Door Handle
4AW11107407 Whirlpool Door Handle
5CABINET (NOT A SERVICEABLE PART)
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10299226 Whirlpool Door Hinge
9WPW10278991 Whirlpool Insulation
10W10761018 Whirlpool Dishwasher Left Door Trim
10CWP8523166 Whirlpool Door Trim
10AW10761014 Whirlpool Right Door Trim
10BWP8523172 Whirlpool Left Door Trim
11WP355214 Whirlpool Screw
12W11178521 Whirlpool Dishwasher Nameplate
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16AWPW10409945 Whirlpool Glass Door
16W11702167 Whirlpool Door Glass
17WPW10316950 Whirlpool Window Frame
18WPW10299227 Whirlpool Range Door Hinge
19WP8523177 Whirlpool Door Trim Assembly
19AWP8523175 Whirlpool Door Trim Assembly
20WP9761344 Whirlpool Door Liner
21WPW10031790 Whirlpool Screw
