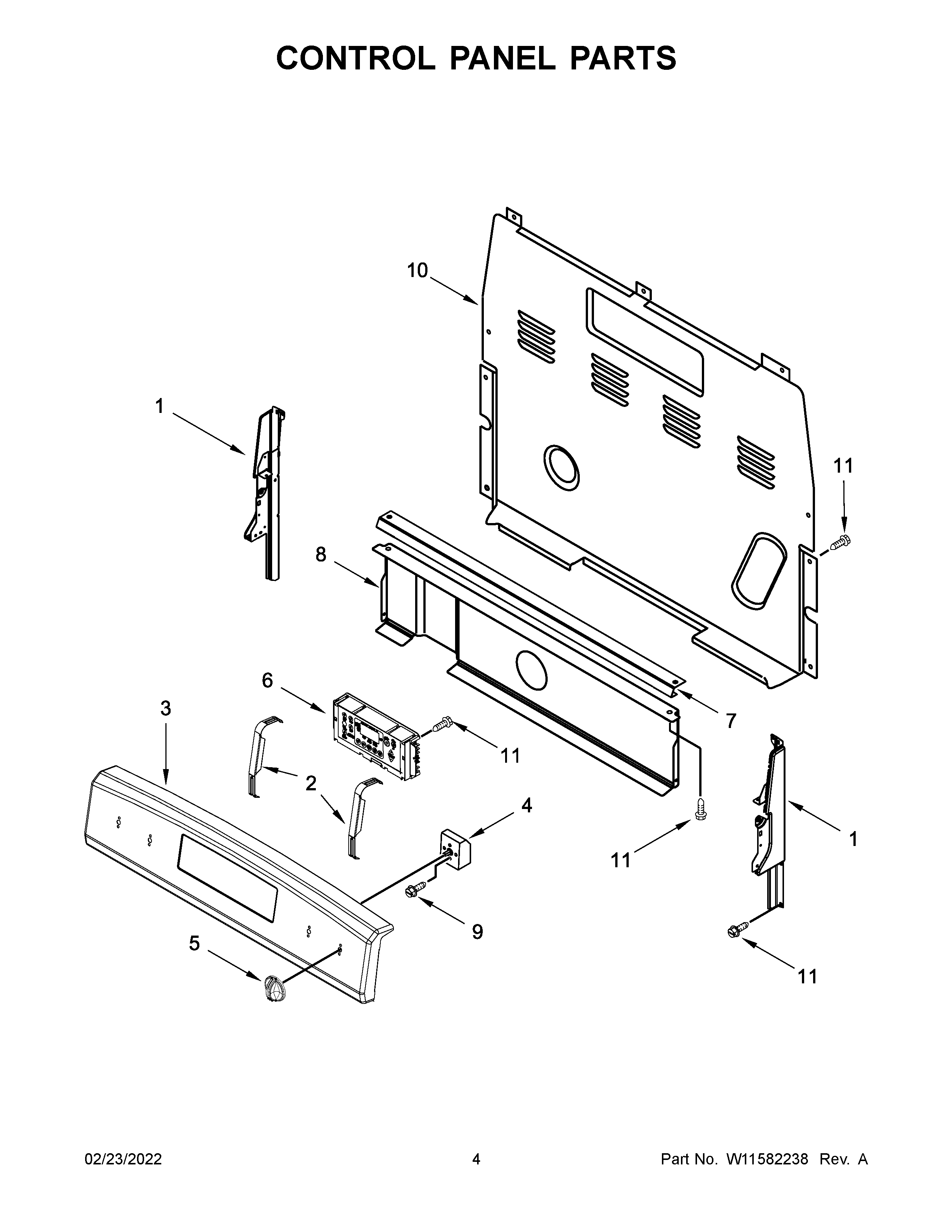

WFE515S0JW3 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3A	W11180282 Whirlpool Control Panel
3	W11242068 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4B	WP3149400 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5A	W11158173 Whirlpool Knob Assembly
5	W11158169 Whirlpool Knob
6	W11583303-includeCORE Whirlpool W11583303 Washer Electronic Control Board + Core
6A	W11583311 Whirlpool Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	SCREW
