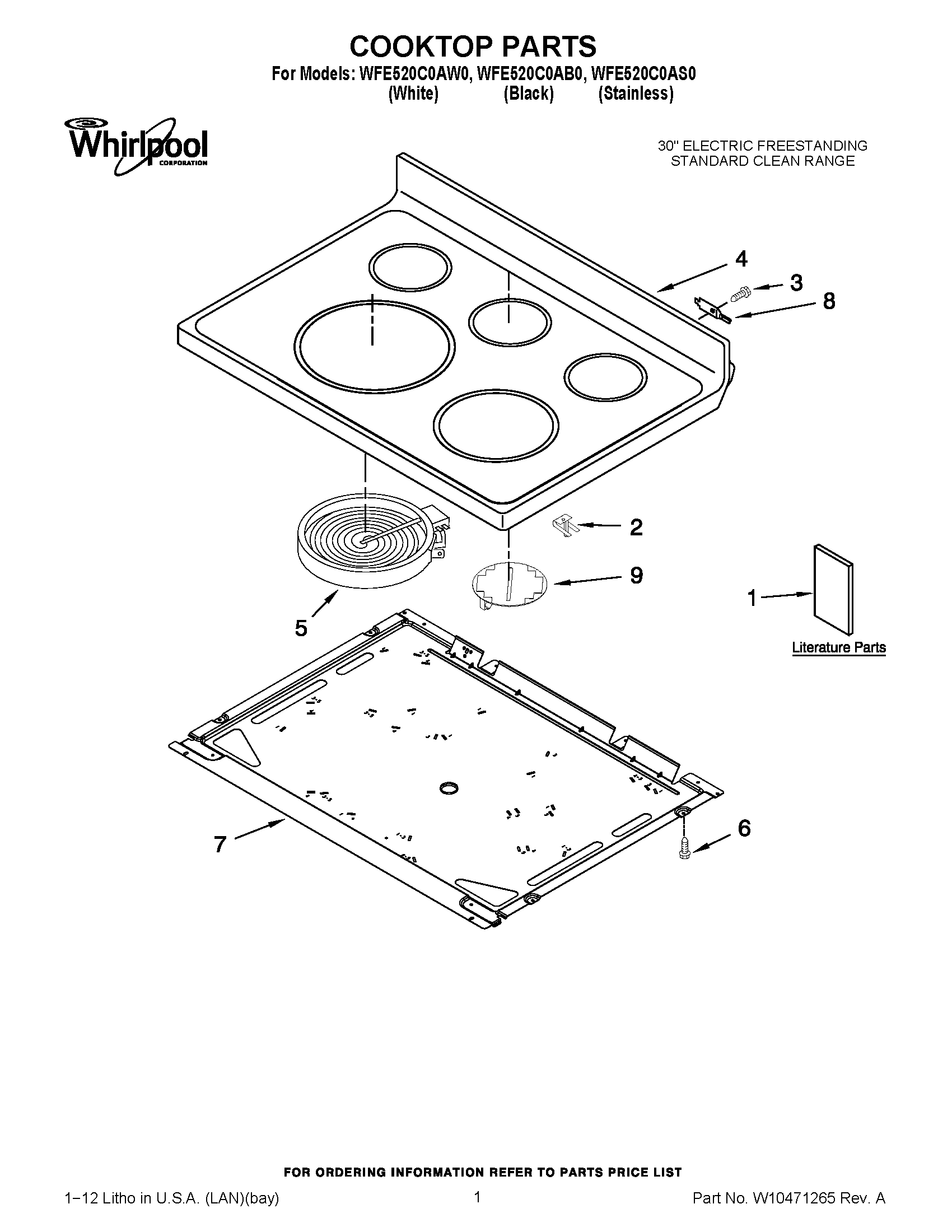

WFE520C0AW0 01 – COOKTOP PARTS

WFE520C0AW0 01 – COOKTOP PARTS

Written by

in

WFE520C0AW0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1OWNERS MANUAL
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472030 Whirlpool Cooktop
4COOKTOP (WHITE)
5W11047722 Whirlpool Radiant Surface Element
5WPW10189281 Whirlpool Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
