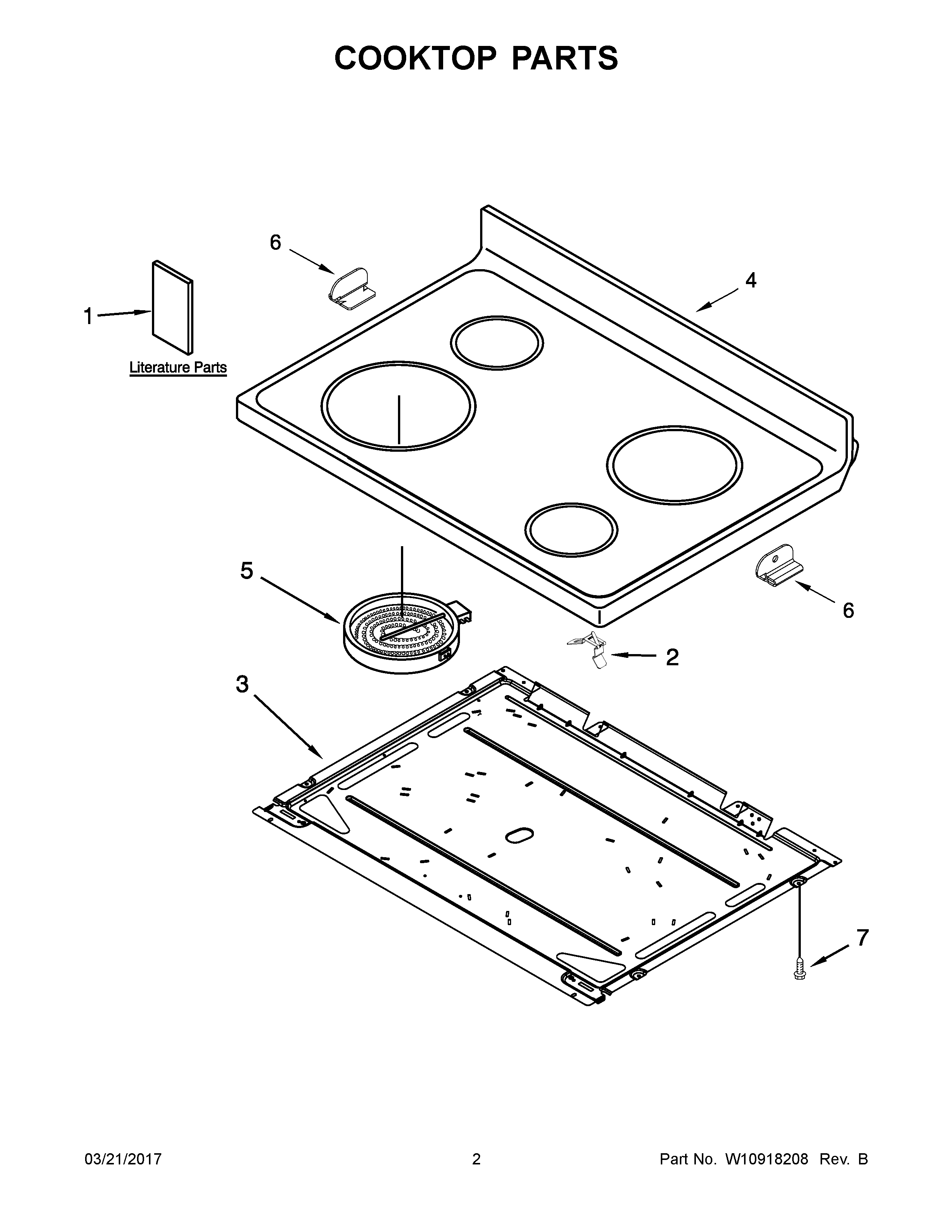

WFE520S0FS0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
NIW11134674 Whirlpool Wire Harness
1DDIAGRAM, WIRING
1CTECH SHEET
1AOWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
1BSAFER COOKING TIPS (ENGLISH
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10245805 Whirlpool Range Black Glass Cooktop
5BELMNT-SURF
5AW11047722 Whirlpool Radiant Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6W10607641 Whirlpool Clip
6AW10607642 Whirlpool Clip
7WP3196557 Whirlpool Screw
