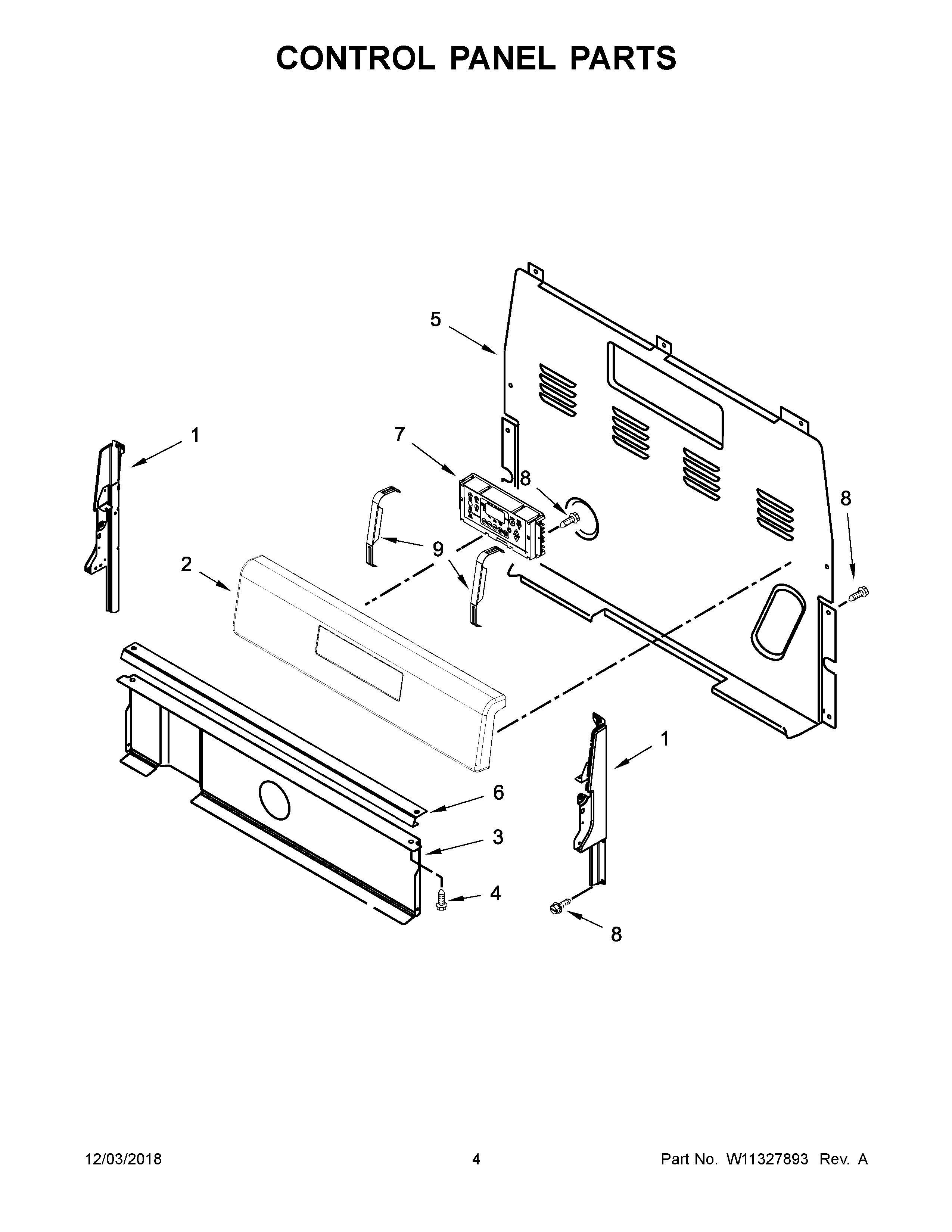

WFE520S0FS2 03 – CONTROL PANEL PARTS

WFE520S0FS2 03 – CONTROL PANEL PARTS

Written by

in

WFE520S0FS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10919745 Whirlpool Control Panel
3W10134247 Whirlpool Heat Shield
4WP3196557 Whirlpool Screw
5WP8272473 Whirlpool Rear Cover
6W10525121 Whirlpool Control Bracket
7W11267090-includeCORE Whirlpool W11267090 Refrigerator Electronic Control Board + Core
8SCREW
9W11230932 Whirlpool Bracket Mounting
