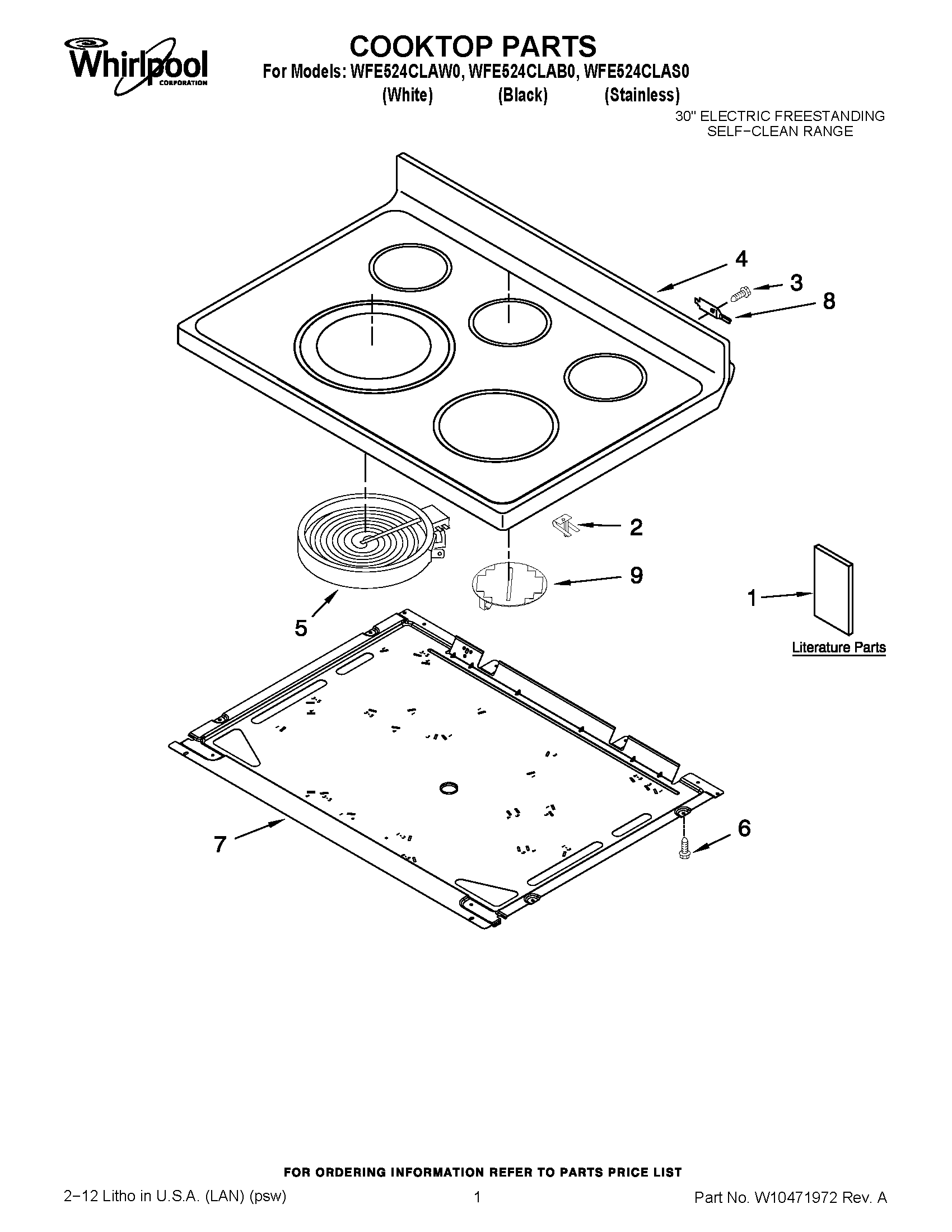

WFE524CLAB0 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	TECH SHEET
1	OWNERS MANUAL
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10472033 Whirlpool Cooktop
4	W10472034 Whirlpool Cooktop
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5	WPW10189281 Whirlpool Surface Element
5	ELMNT-SURF
6	WP3196557 Whirlpool Screw
7	PAN
8	WP3195060 Whirlpool Cooktop Pin
9	W11047668 Whirlpool Surface Element
