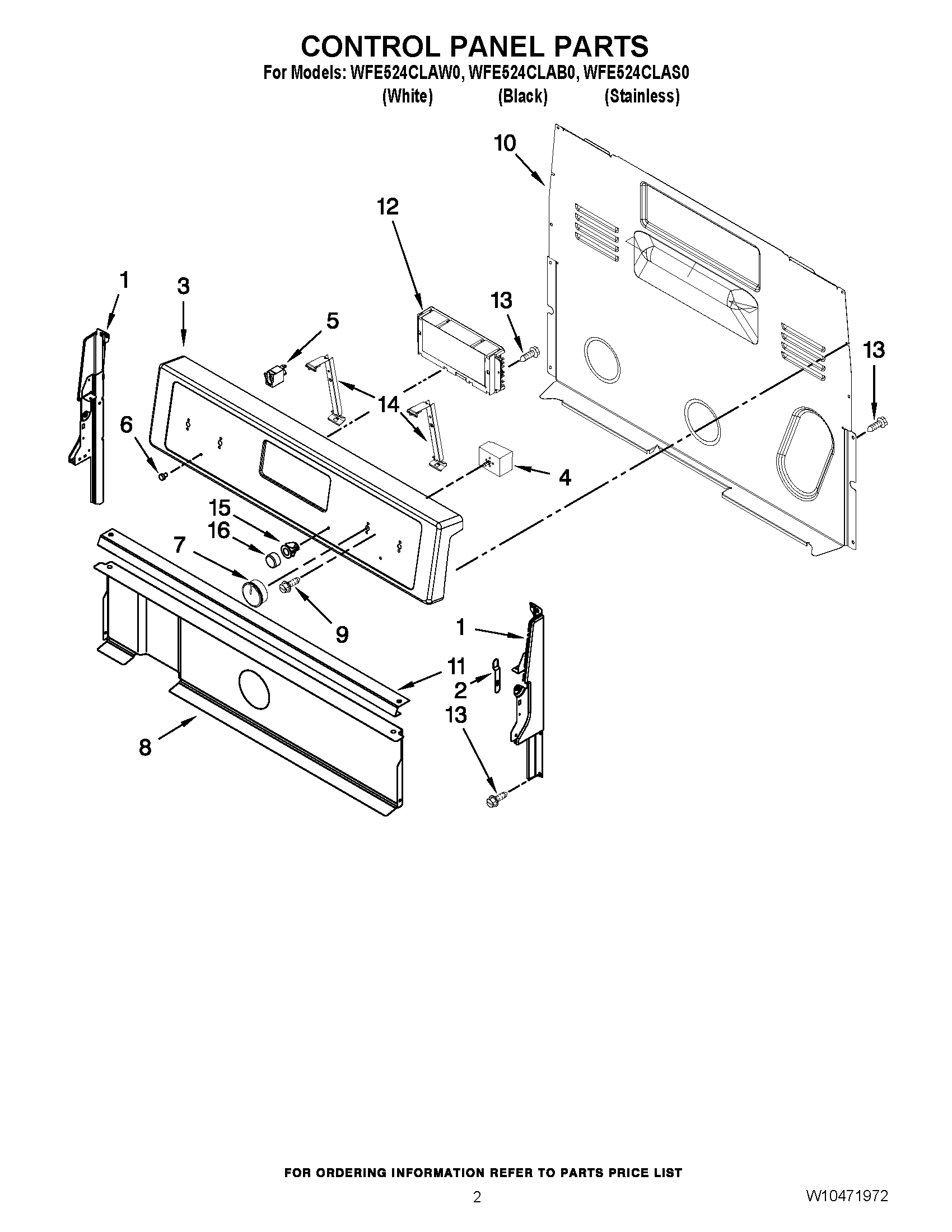

WFE524CLAB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (STAINLESS)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WPW10411934 Whirlpool Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WPW10490038 Whirlpool Knob
7	WPW10490037 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10734599-includeCORE Whirlpool WPW10734599 Refrigerator Electronic Control Board + Core
12	WPW10348625-includeCORE Whirlpool WPW10348625 Washer Electronic Control Board + Core
12	WPW10734600-includeCORE Whirlpool WPW10734600 Washer Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	BEZEL, KEEP WARM (STAINLESS)
15	W10217760 Whirlpool Switch Bezel
15	W10217758 Whirlpool Switch Bezel
16	W10918209 Whirlpool Push Button
16	9758491 Whirlpool Oven Push Button
16	9757492 Whirlpool Oven Push Button
