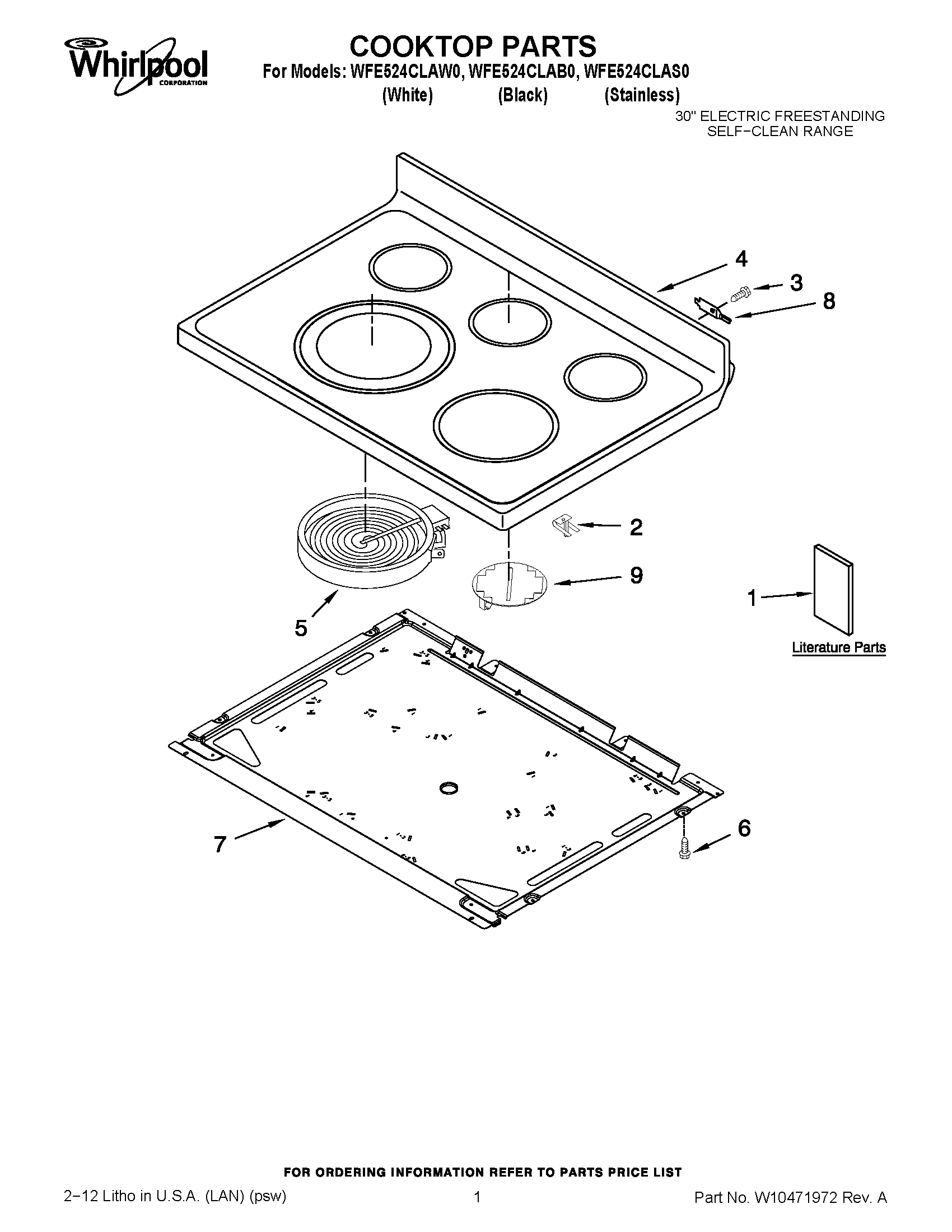

WFE524CLAS0 01 – COOKTOP PARTS

WFE524CLAS0 01 – COOKTOP PARTS

Written by

in

WFE524CLAS0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472033 Whirlpool Cooktop
4W10472034 Whirlpool Cooktop
5WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5WPW10189281 Whirlpool Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
