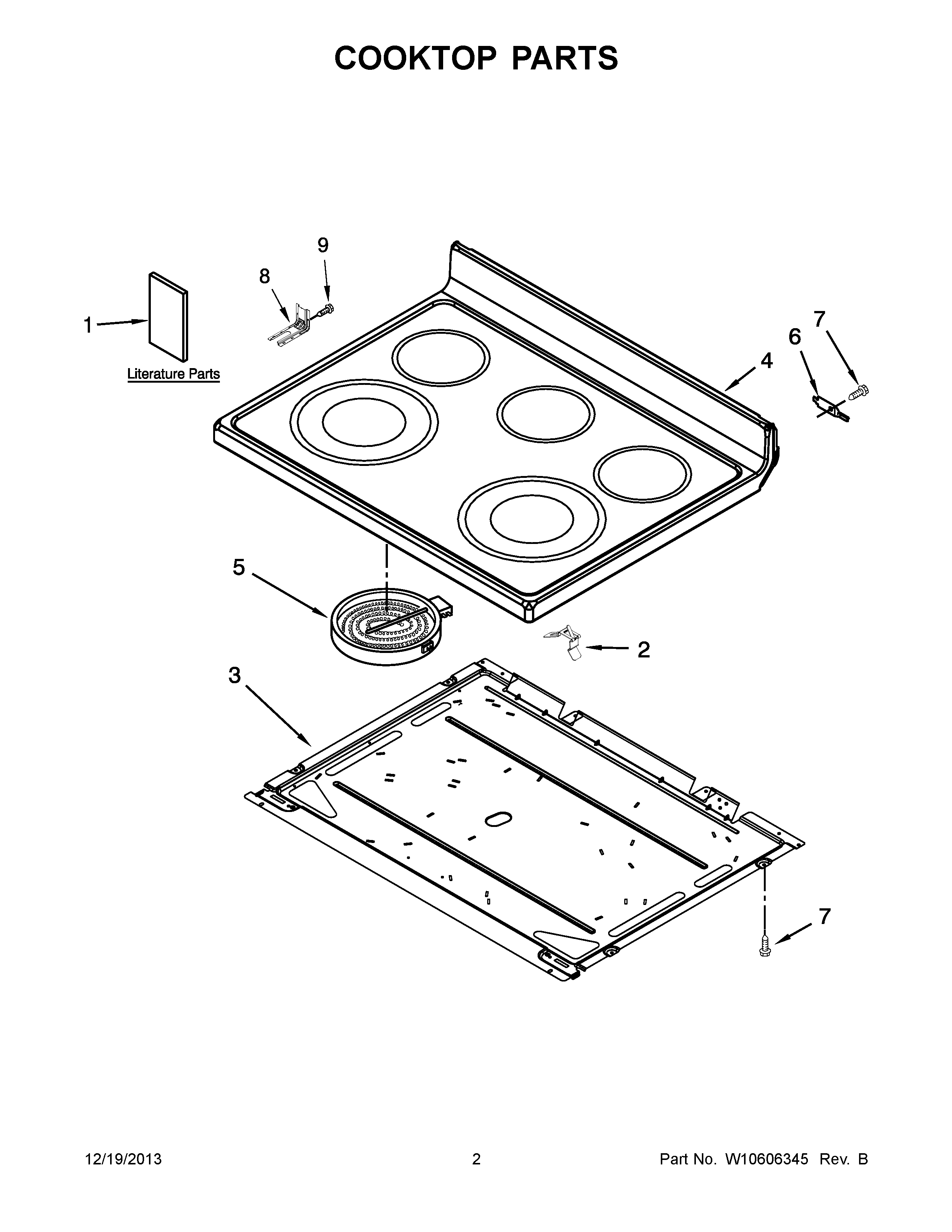

WFE524CLBB0 02 – COOKTOP PARTS

WFE524CLBB0 02 – COOKTOP PARTS

Written by

in

WFE524CLBB0 02 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET, (ENGLISH)
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10628295 Whirlpool Cooktop
4W10628297 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5W11047668 Whirlpool Surface Element
5ELMNT-SURF
6WP3195060 Whirlpool Cooktop Pin
7WP3196557 Whirlpool Screw
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
