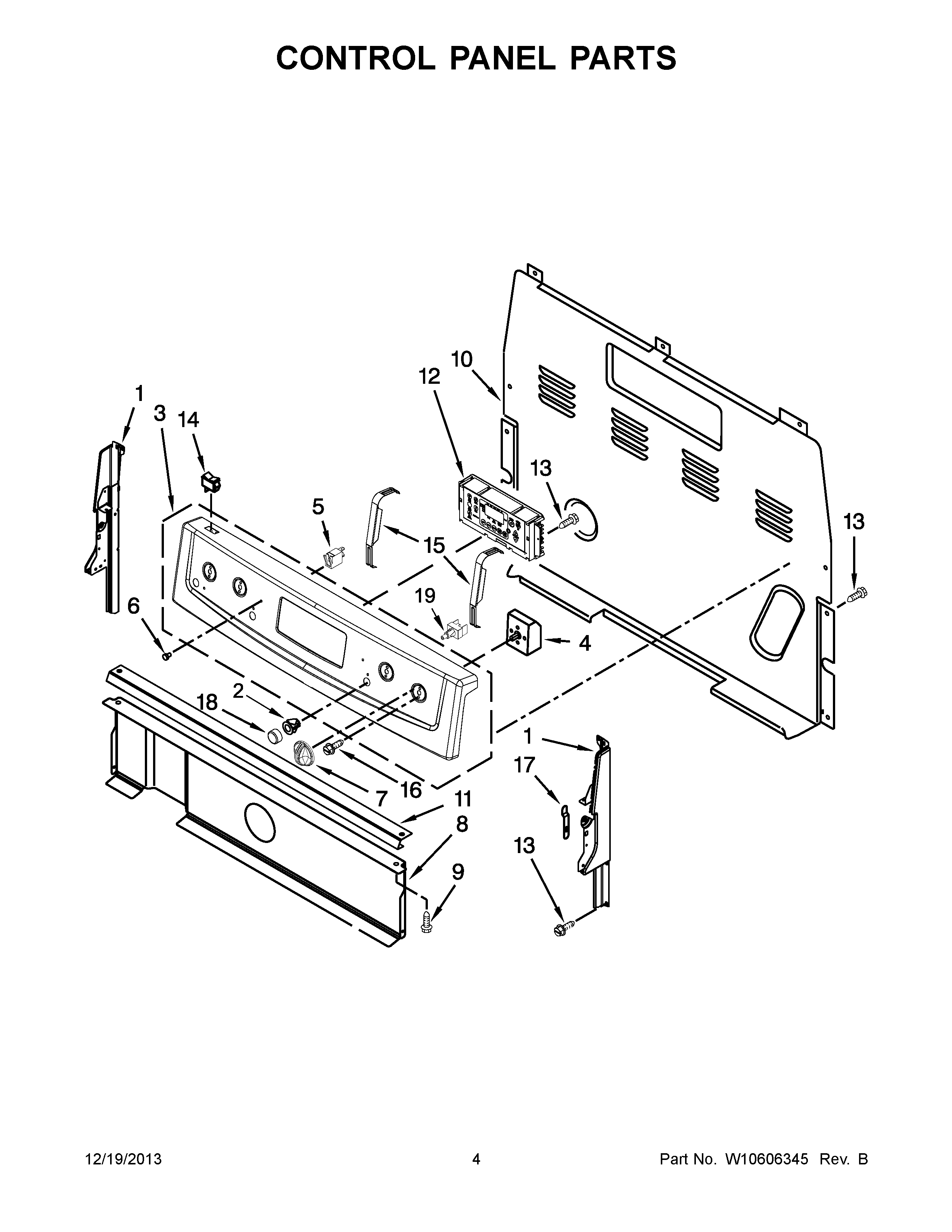

WFE524CLBB0 03 – CONTROL PANEL PARTS

WFE524CLBB0 03 – CONTROL PANEL PARTS

Written by

in

WFE524CLBB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10217758 Whirlpool Switch Bezel
2W10217760 Whirlpool Switch Bezel
3PANEL, CONTROL (WHITE)
3W10370178 Whirlpool Control Panel
3W11234450 Whirlpool Control Panel
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WPW10490037 Whirlpool Knob
7WPW10490038 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196557 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10502613-includeCORE Whirlpool WPW10502613 Refrigerator Electronic Control Board + Core
12WPW10502615-includeCORE Whirlpool WPW10502615 Washer Electronic Control Board + Core
12WPW10502614-includeCORE Whirlpool WPW10502614 Refrigerator Electronic Control Board
13SCREW
143149360 Whirlpool Light Switch
14WP4314961 Whirlpool Lite Switch
15W11230932 Whirlpool Bracket Mounting
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
189758491 Whirlpool Oven Push Button
18W10918209 Whirlpool Push Button
189757492 Whirlpool Oven Push Button
19WP8272820 Whirlpool PB Switch
