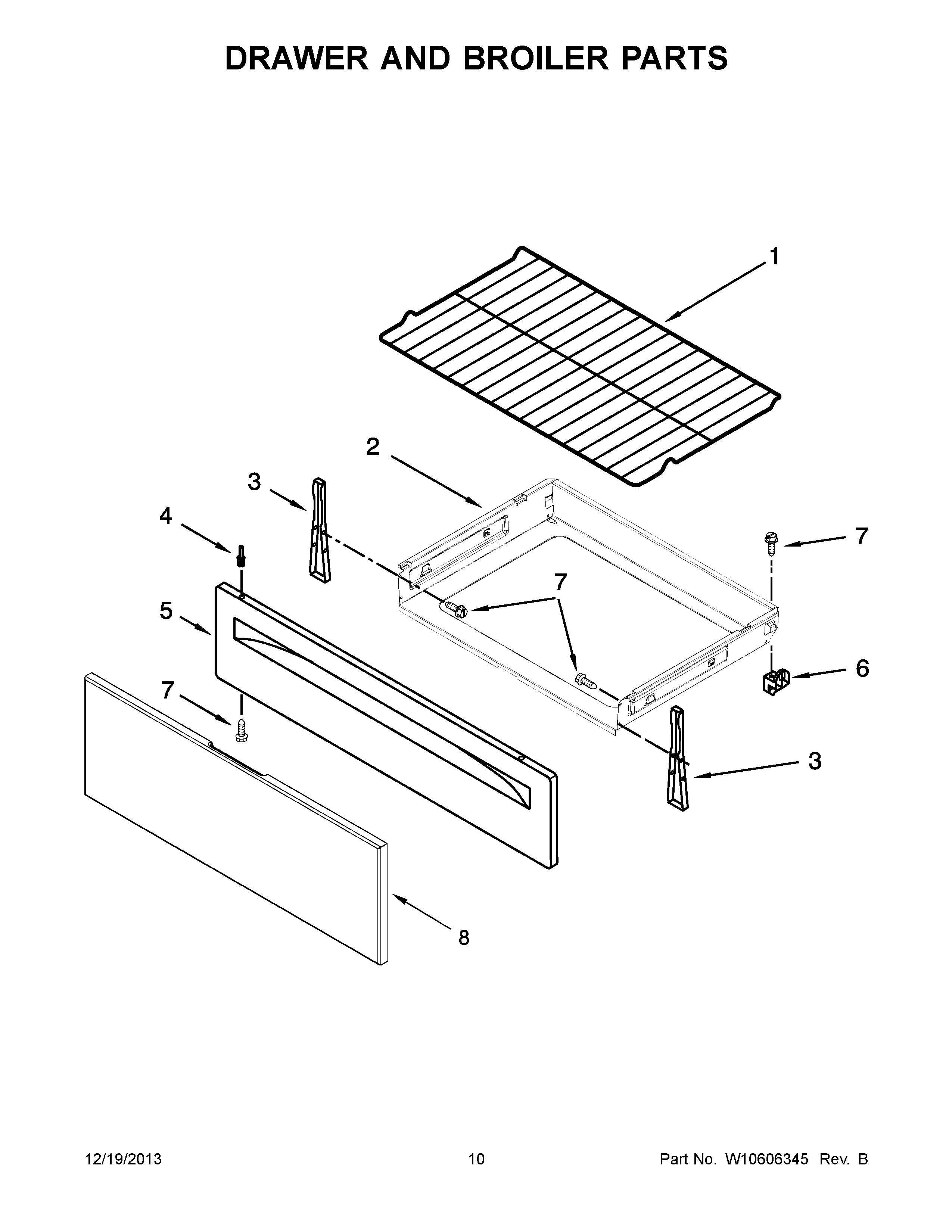

WFE524CLBB0 06 – DRAWER AND BROILER PARTS

WFE524CLBB0 06 – DRAWER AND BROILER PARTS

Written by

in

WFE524CLBB0 06 – DRAWER AND BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3W10838990 Whirlpool Mounting Bracket
3WPW10462912 Whirlpool Bracket Mounting
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11219377 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
8WPW10330070 Whirlpool Drawer Panel
