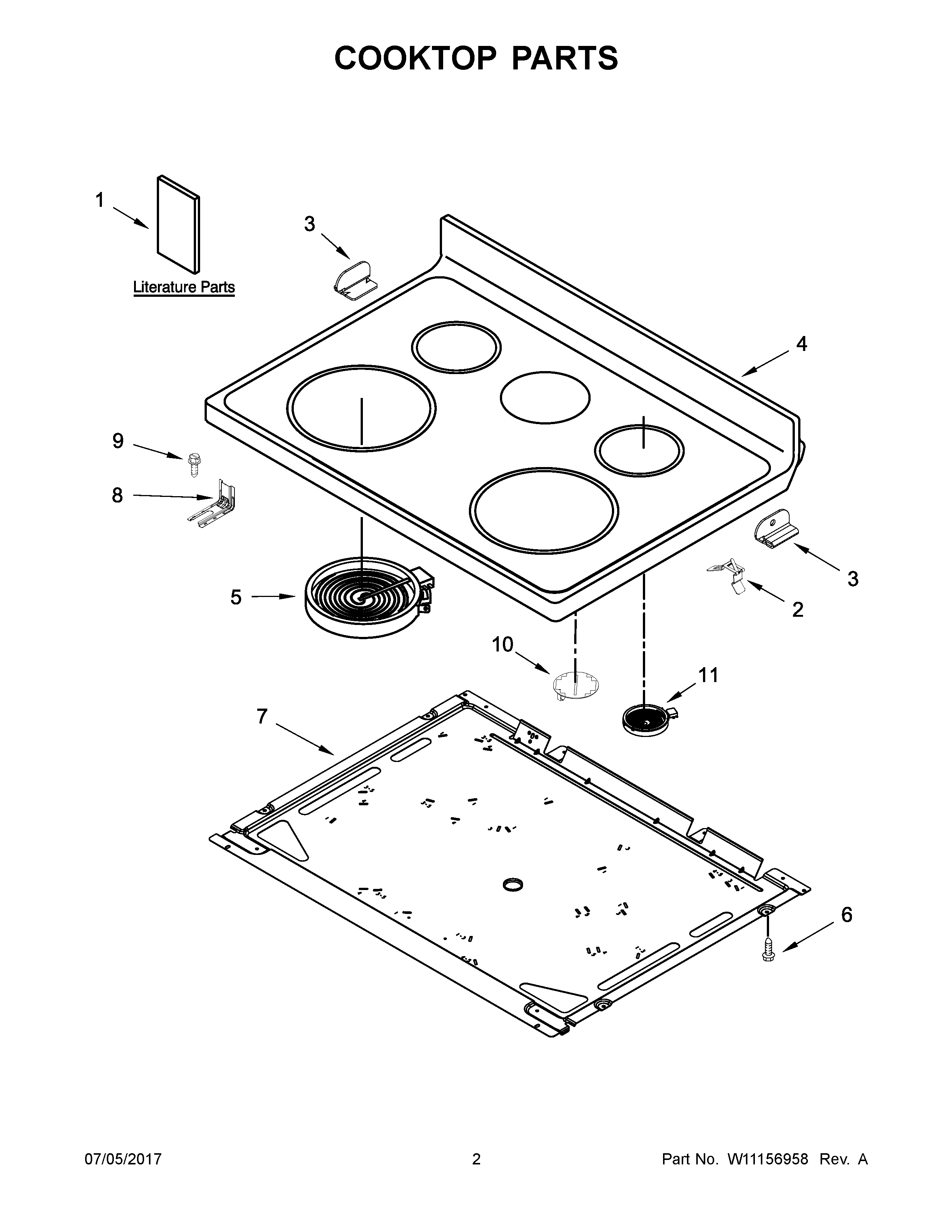

WFE525S0HB0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134845 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	W11449104 Whirlpool Wire Harness
NI	W11675846 Whirlpool Wire Harness
1A	USE AND CARE GUIDE
1D	SAFER COOKING TIPS (ENGLISH
1B	SHEET, TECH
1C	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11156895 Whirlpool Cooktop Maintop
4A	W11157949 Whirlpool Cooktop
4B	W11157950 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
