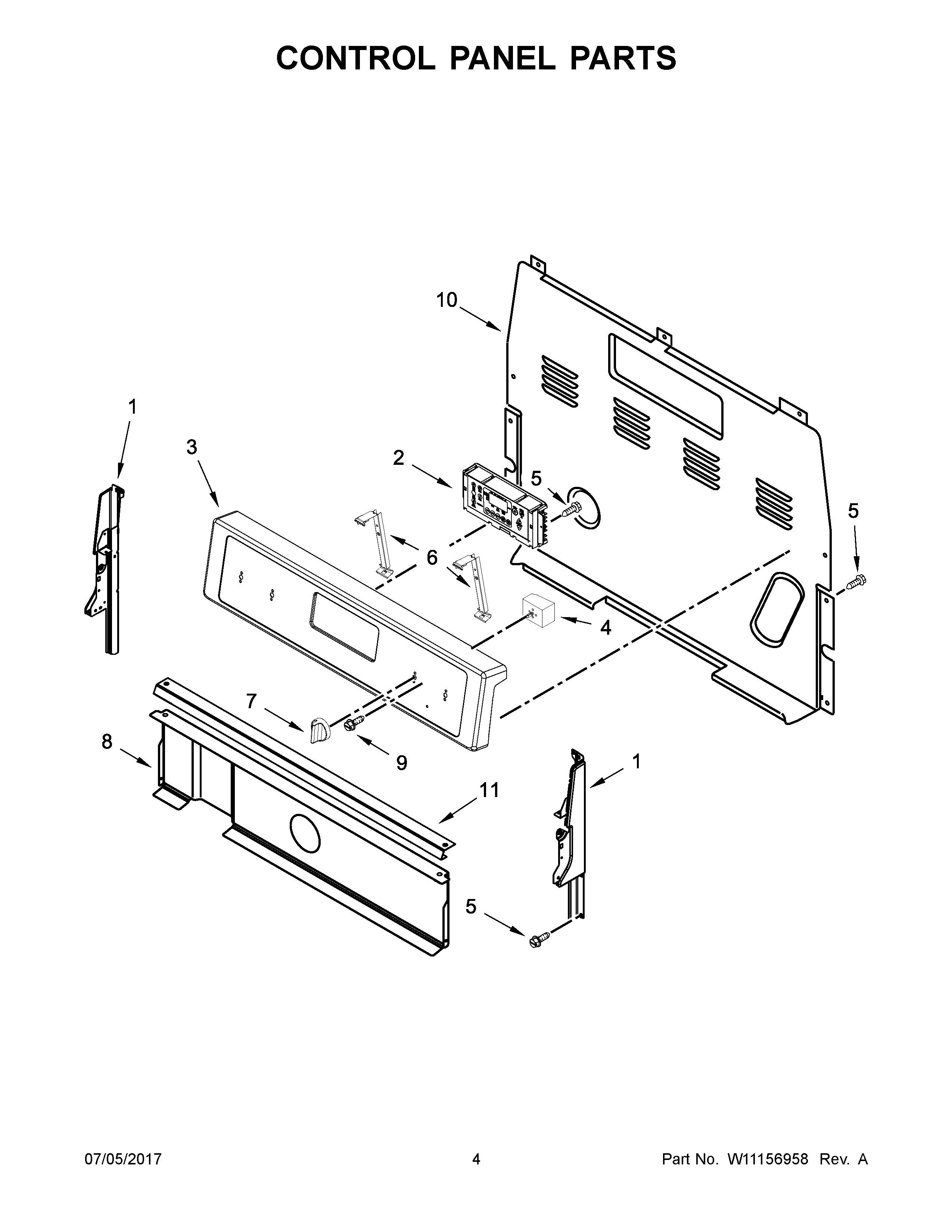

WFE525S0HT0 03 – CONTROL PANEL PARTS

Products

Position	Product
1D	W11230611 Whirlpool Panel Endcap
1E	W11230612 Whirlpool Panel End Cap
1C	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
1B	W11219365 Whirlpool Panel Endcap
2A	W11546077-includeCORE Whirlpool W11546077 Refrigerator Electronic Control Board + Core
2B	W11536813-includeCORE Whirlpool W11536813 Washer Electronic Control Board + Core
2	W11544349 Whirlpool Control Board + Core
3	W11158183 Whirlpool Control Panel
3A	W11158184 Whirlpool Control Panel
3B	W11158185 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	SCREW
6	W11230932 Whirlpool Bracket Mounting
7A	W11158173 Whirlpool Knob Assembly
7	W11158169 Whirlpool Knob
7B	W11158174 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
