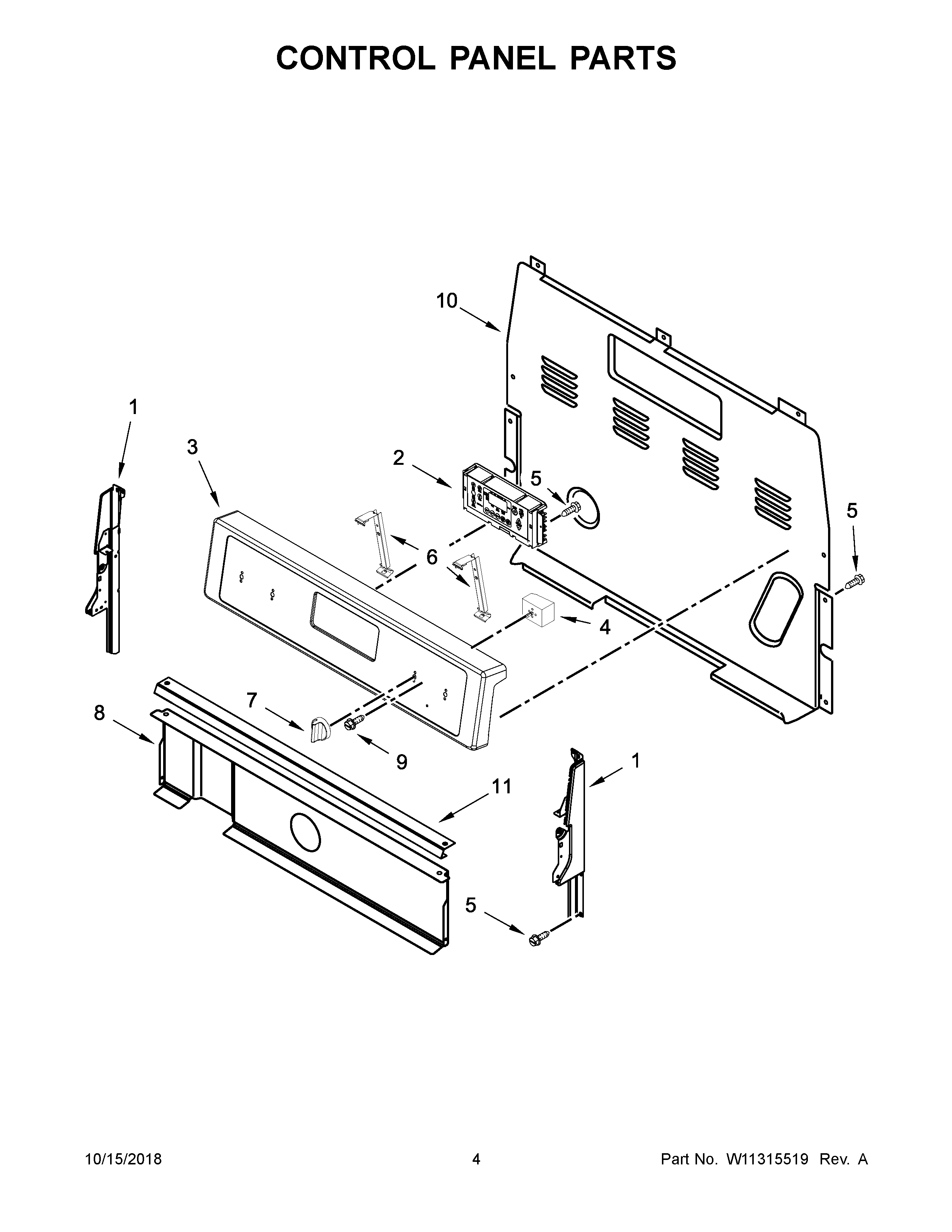

WFE525S0HT1 03 – CONTROL PANEL PARTS

Products

Position	Product
1D	W11230611 Whirlpool Panel Endcap
1E	W11230612 Whirlpool Panel End Cap
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W11544349 Whirlpool Control Board + Core
2A	W11546077-includeCORE Whirlpool W11546077 Refrigerator Electronic Control Board + Core
3A	W11158184 Whirlpool Control Panel
3	W11158183 Whirlpool Control Panel
3B	W11158185 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	SCREW
6	W11230932 Whirlpool Bracket Mounting
7A	W11158173 Whirlpool Knob Assembly
7	W11158169 Whirlpool Knob
7B	W11158174 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
