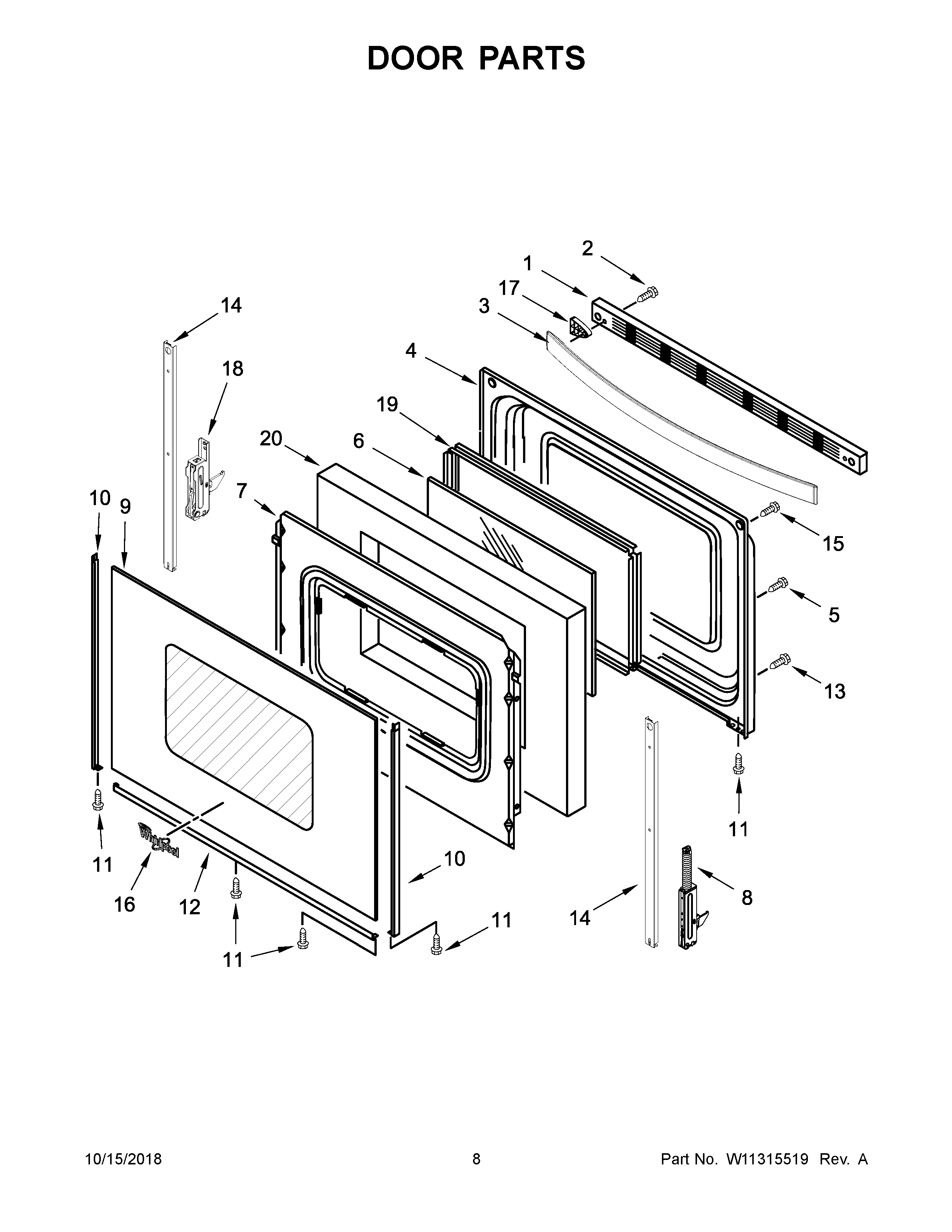

WFE525S0HT1 05 – DOOR PARTS

Products

Position	Product
1B	WPW10310923 Whirlpool Vent Trim
1	TRIM-VENT
1A	W10817433 Whirlpool Vent Trim
2	W10831019 Whirlpool Stove Door Screw
3B	W11315193 Whirlpool Door Handle
3A	W11107407 Whirlpool Door Handle
3	W11107394 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WPW10299226 Whirlpool Door Hinge
9	W11702167 Whirlpool Door Glass
9A	WPW10409945 Whirlpool Glass Door
9B	WPW10409947 Whirlpool Glass Door
10E	WP8523167 Whirlpool Door Trim Assembly
10B	WP8523172 Whirlpool Left Door Trim
10D	WP8523173 Whirlpool Door Trim
10C	WP8523166 Whirlpool Door Trim
10	W10761018 Whirlpool Dishwasher Left Door Trim
10A	W10761014 Whirlpool Right Door Trim
11	WP355214 Whirlpool Screw
12B	WP8523178 Whirlpool Door Trim
12	WP8523177 Whirlpool Door Trim Assembly
12A	WP8523175 Whirlpool Door Trim Assembly
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W11178521 Whirlpool Dishwasher Nameplate
17A	W11590861 Whirlpool Door Handle
17	STANDOFF, HANDLE (BLACK)
17B	STANDOFF, HANDLE (BISCUIT)
18	WPW10299227 Whirlpool Range Door Hinge
19	WPW10316950 Whirlpool Window Frame
20	WPW10278991 Whirlpool Insulation
