WFE525S0HV0 03 – CONTROL PANEL PARTS

WFE525S0HV0 03 – CONTROL PANEL PARTS

Written by

in

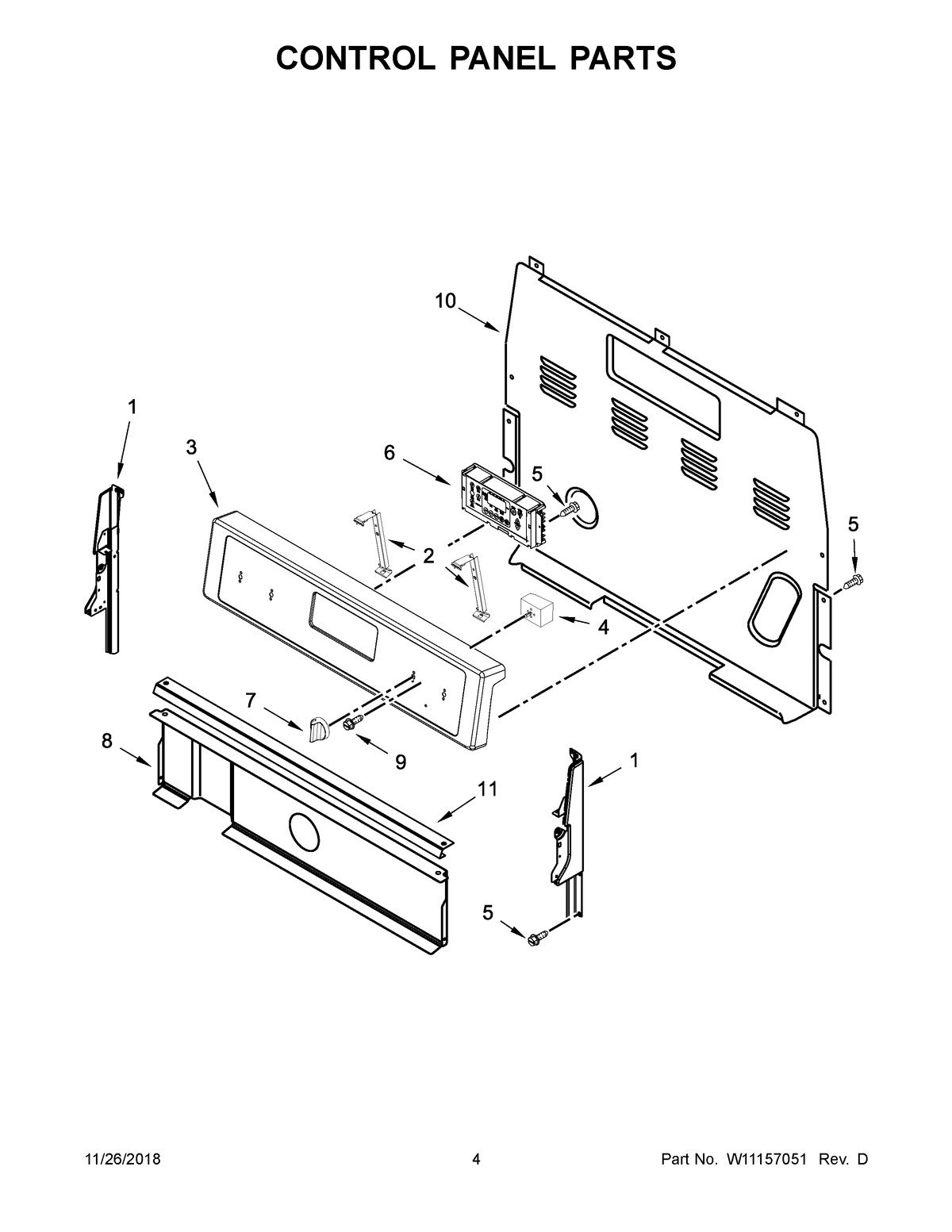

WFE525S0HV0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1AENDCAP (BLACK (RIGHT))
2BRACKET, CONTROL
3ACONSOLE, ASSEMBLY (BLACK STAINLESS)
3CONSOLE, ASSEMBLY (STAINLESS)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5SCREW
6CONTROL, ELECTRONIC (LCX) (BLACK)
7KNOB (STAINLESS)
7AKNOB (BLACK STAINLESS)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
