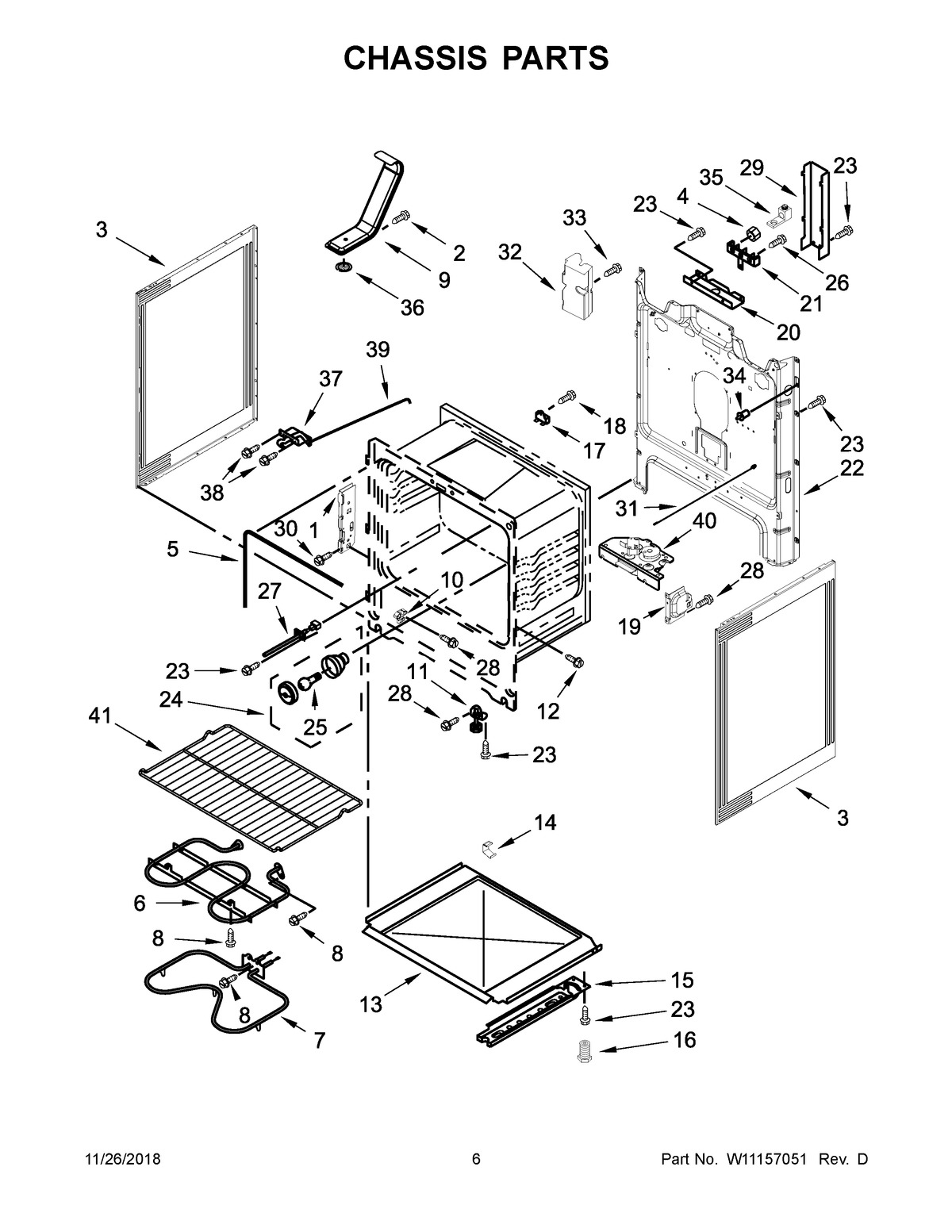

WFE525S0HV0 04 – CHASSIS PARTS

WFE525S0HV0 04 – CHASSIS PARTS

Written by

in

WFE525S0HV0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, FLUE
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	RECEIVER, HINGE
2	SCREW
3	PANEL, SIDE (BLACK)
4	NUT
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	SCREW
9	TUBE, VENT
10	GLIDE, DRAWER FRONT
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (RIGHT)
15A	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
23	SCREW
24	MAY W11175594
25	BULB, HALOGEN 40 WATTS
26	SCREW
27	SENSOR, OVEN
28	SCREW
29	COVER, TERMINAL BLOCK
30	MAY W10031780
31	ROD, DOOR SWITCH
32	COUNTERWEIGHT
33	SCREW
34	SWITCH, DOOR
35	KIT, BARE WIRE ADAPTER BLOCK
36	SCREEN, VENT
37	ASSEMBLY, DOOR LATCH (FRONT)
38	SCREW
39	ROD, LATCH
40	ASSEMBLY, DOOR LATCH (REAR)
41	RACK, OVEN
