WFE525S0HV1 02 – COOKTOP PARTS

WFE525S0HV1 02 – COOKTOP PARTS

Written by

in

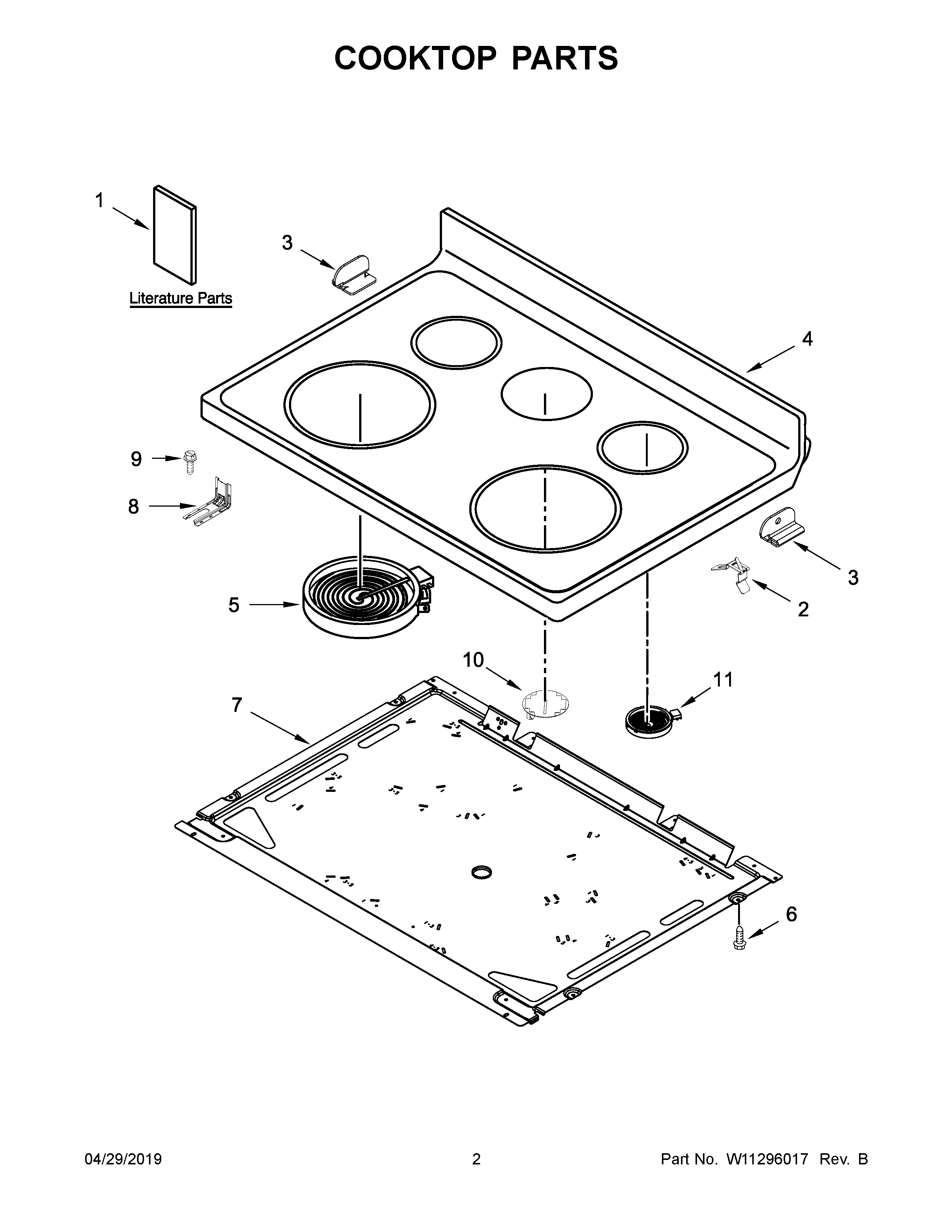

WFE525S0HV1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134845 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11449104 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
1CSHEET, TECH
1USE AND CARE GUIDE
1AINSTRUCTIONS, INSTALLATION
1BWIRING DIAGRAM
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11156895 Whirlpool Cooktop Maintop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10W11041453 Whirlpool Surface Element
11ELMNT-SURF
