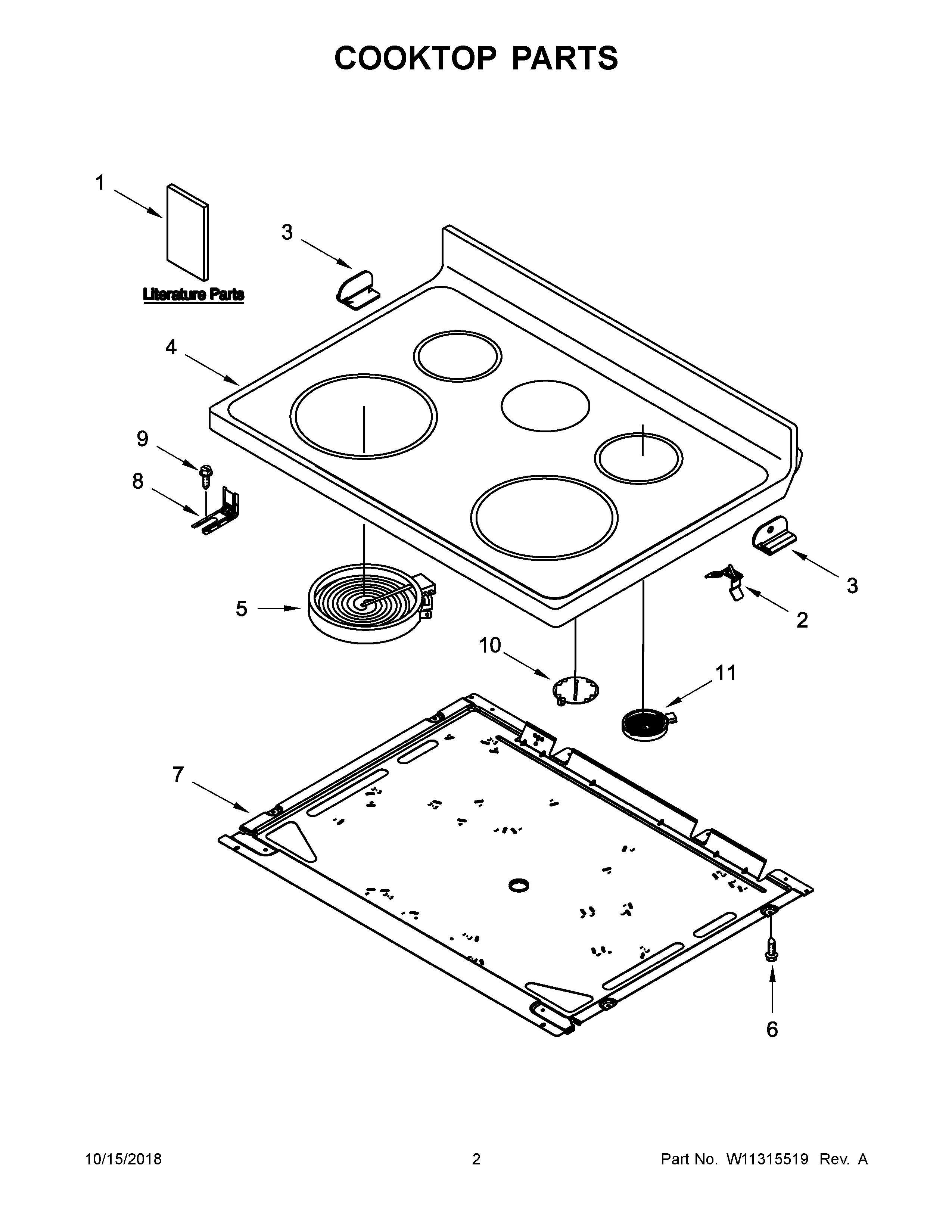

WFE525S0HW1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134845 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11449104 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIWP3391018 Whirlpool Wire Tie
1CWIRING DIAGRAM
1BSHEET, TECH
1AUSE AND CARE GUIDE
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4AW11157949 Whirlpool Cooktop
4W11156895 Whirlpool Cooktop Maintop
4BW11157950 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10W11041453 Whirlpool Surface Element
11ELMNT-SURF
