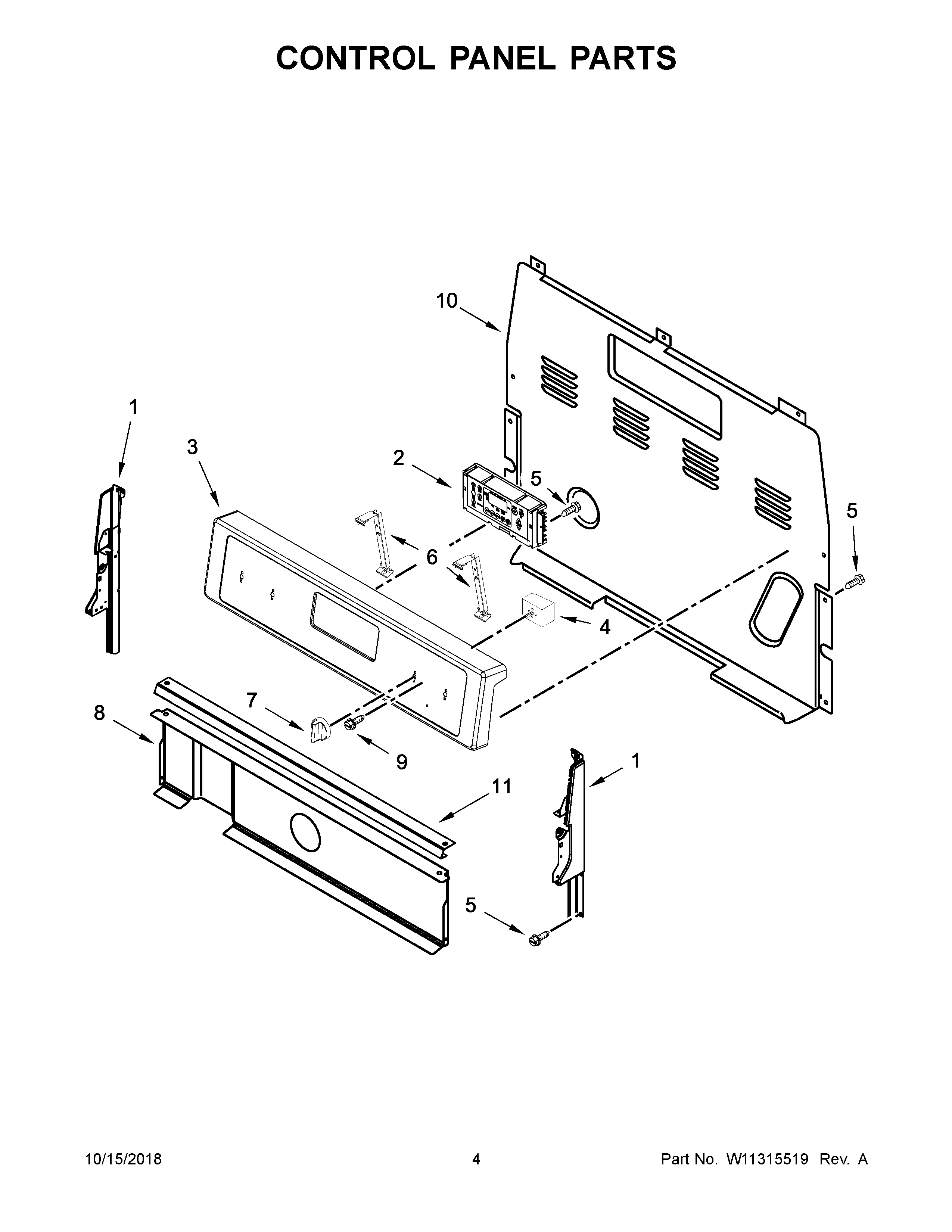

WFE525S0HW1 03 – CONTROL PANEL PARTS

WFE525S0HW1 03 – CONTROL PANEL PARTS

Written by

in

WFE525S0HW1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1DW11230611 Whirlpool Panel Endcap
1EW11230612 Whirlpool Panel End Cap
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W11544349 Whirlpool Control Board + Core
2AW11546077-includeCORE Whirlpool W11546077 Refrigerator Electronic Control Board + Core
3AW11158184 Whirlpool Control Panel
3W11158183 Whirlpool Control Panel
3BW11158185 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5SCREW
6W11230932 Whirlpool Bracket Mounting
7AW11158173 Whirlpool Knob Assembly
7W11158169 Whirlpool Knob
7BW11158174 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
