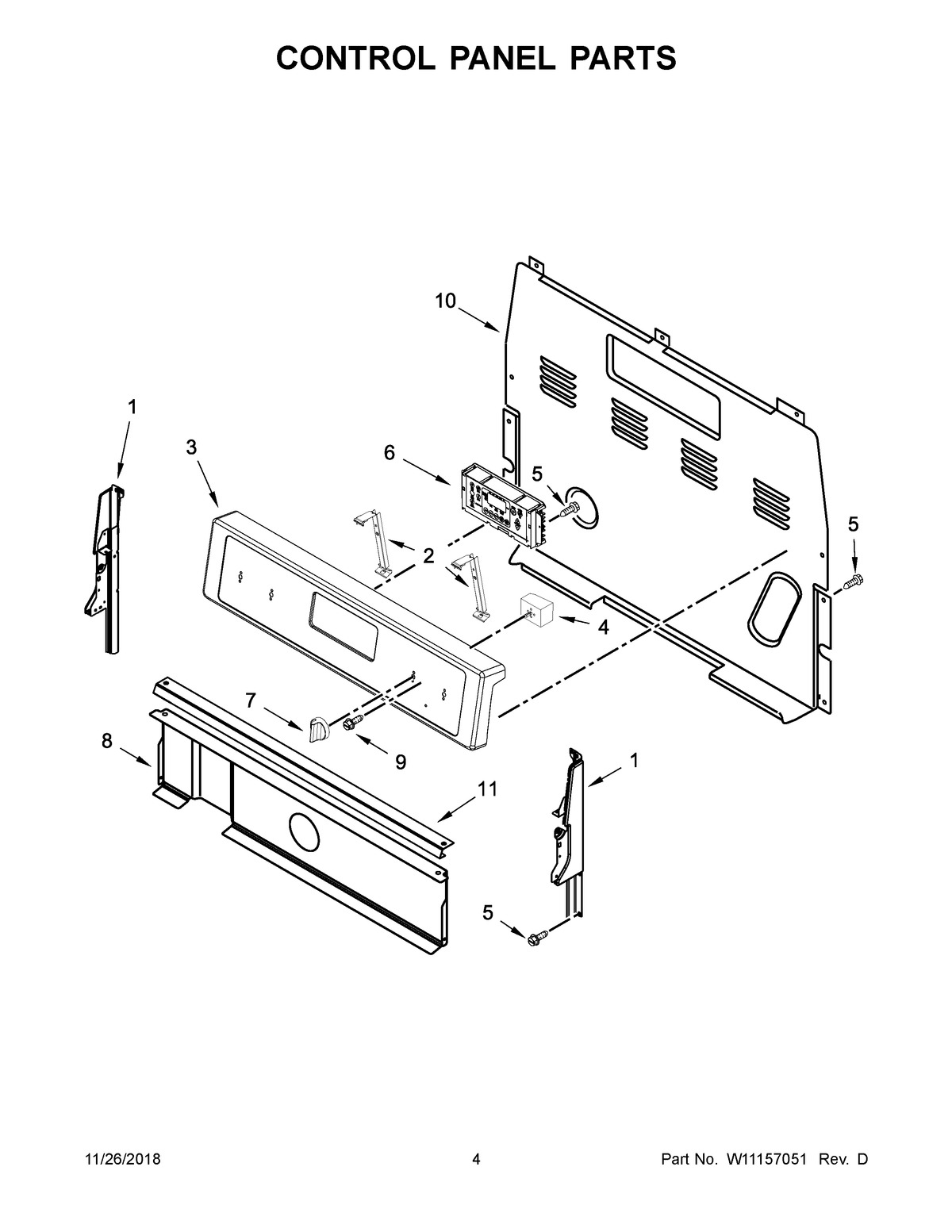

WFE525S0HZ0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONTROL
3A	CONSOLE, ASSEMBLY (BLACK STAINLESS)
3	CONSOLE, ASSEMBLY (STAINLESS)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	CONTROL, ELECTRONIC (LCX) (BLACK)
7	KNOB (STAINLESS)
7A	KNOB (BLACK STAINLESS)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
