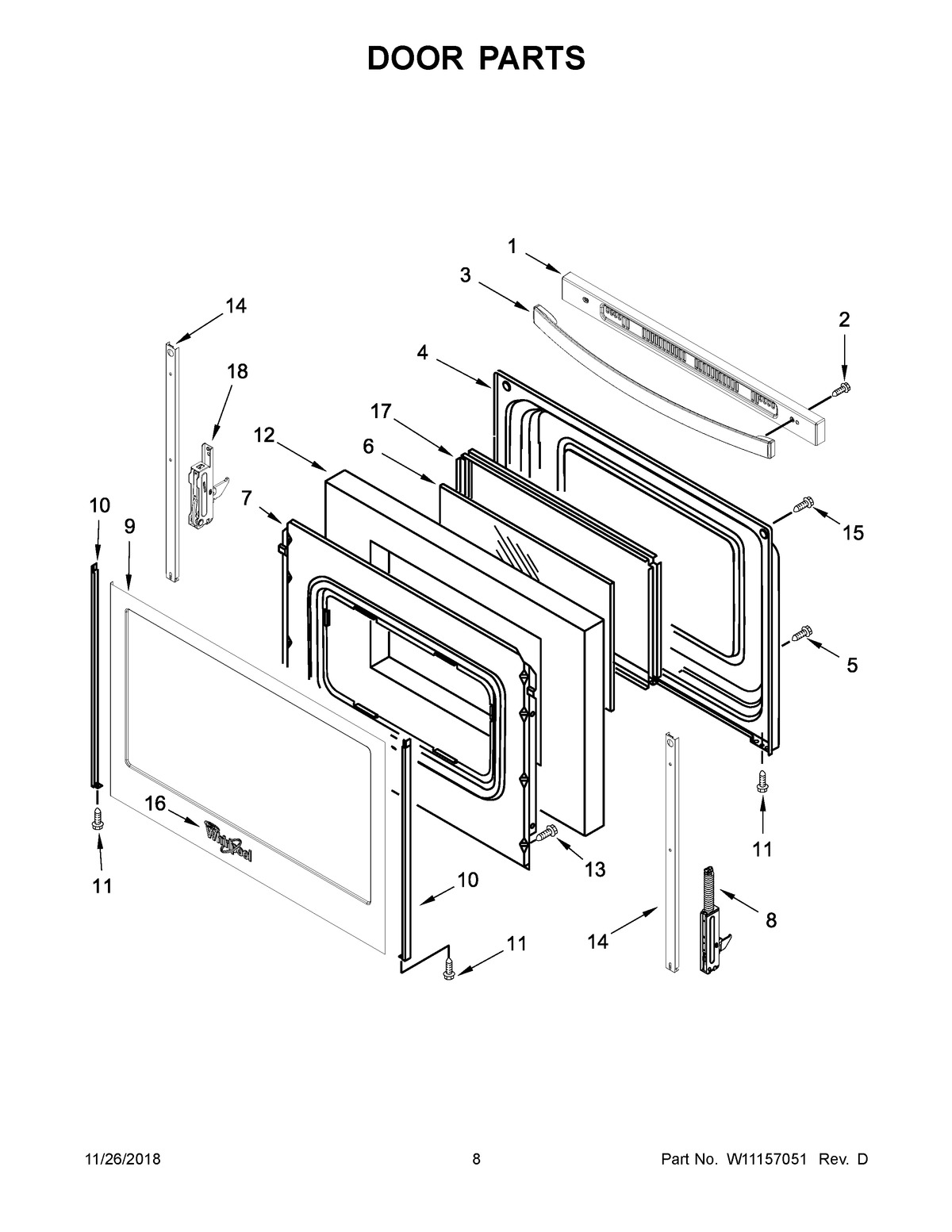

WFE525S0HZ0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3A	HANDLE, DOOR (INCLUDES STANDOFF) (BLACK STAINLESS)
3	HANDLE, DOOR (INCLUDES STANDOFF) (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE (WITH SPRING)
9A	GLASS ASSEMBLY, OUTER DOOR (BLACK STAINLESS)
9	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
10A	TRIM, SIDE (BLACK (RIGHT))
10	TRIM, SIDE (BLACK (LEFT))
11	SCREW
12	INSULATION, DOOR STRIP
13	MAY W10031780
14	STRAP, DOOR
15	SCREW
16	NAMEPLATE
17	FRAME, GLASS
18	HINGE, DOOR (PASSIVE)
