WFE525S0JT1 02 – COOKTOP PARTS

WFE525S0JT1 02 – COOKTOP PARTS

Written by

in

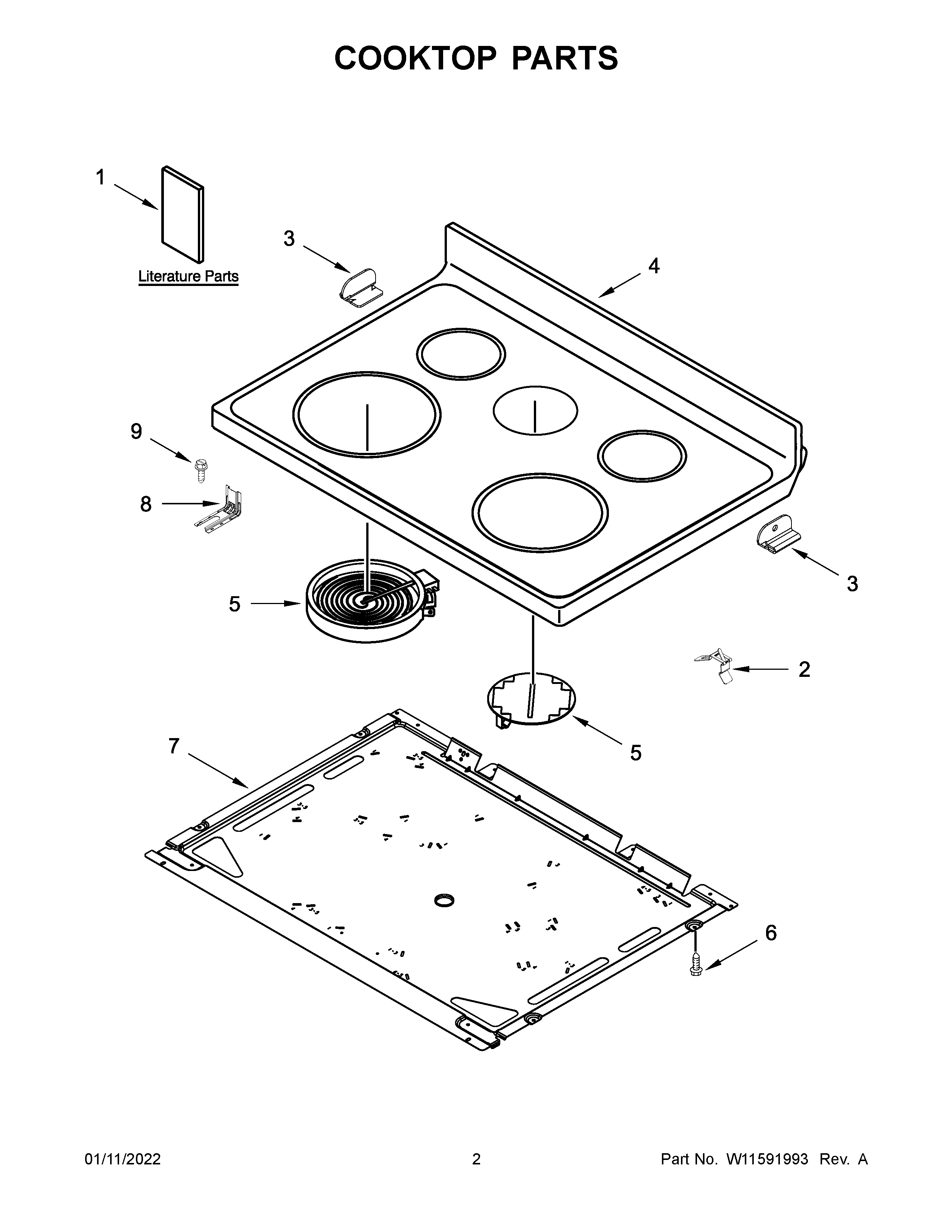

WFE525S0JT1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNS-WIRE
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
1QUICK START GUIDE
1AOWNERS MANUAL
1BTECH SHEET
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11381330 Whirlpool Cooktop
5CW11041453 Whirlpool Surface Element
5BW11047722 Whirlpool Radiant Surface Element
5AELMNT-SURF
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
