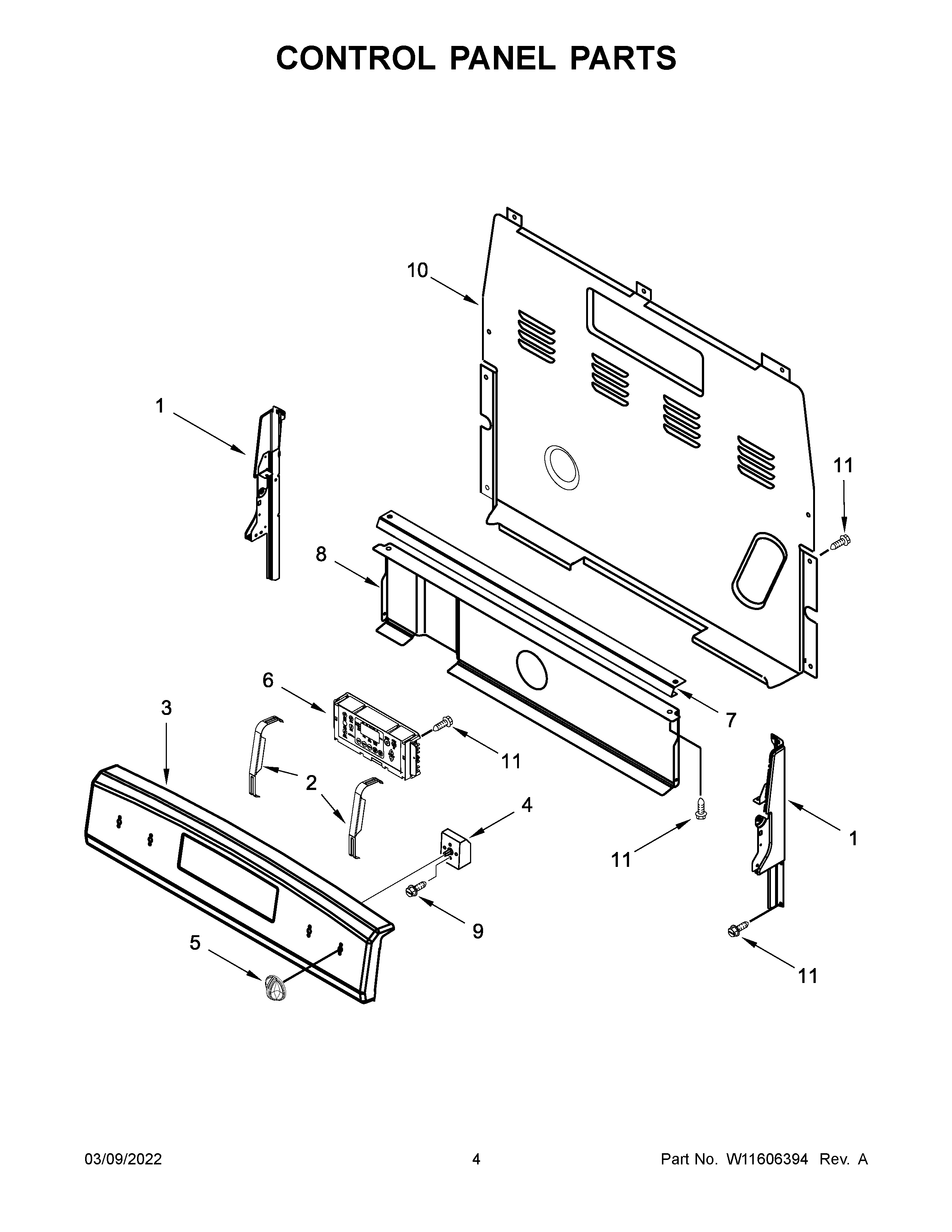

WFE525S0JV3 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3A	W11372362 Whirlpool Control Panel
3	W11175518 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	W11158168 Whirlpool Knob
5A	W11158187 Whirlpool Knob
6	W11594188-includeCORE Whirlpool W11594188 Washer Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	SCREW
