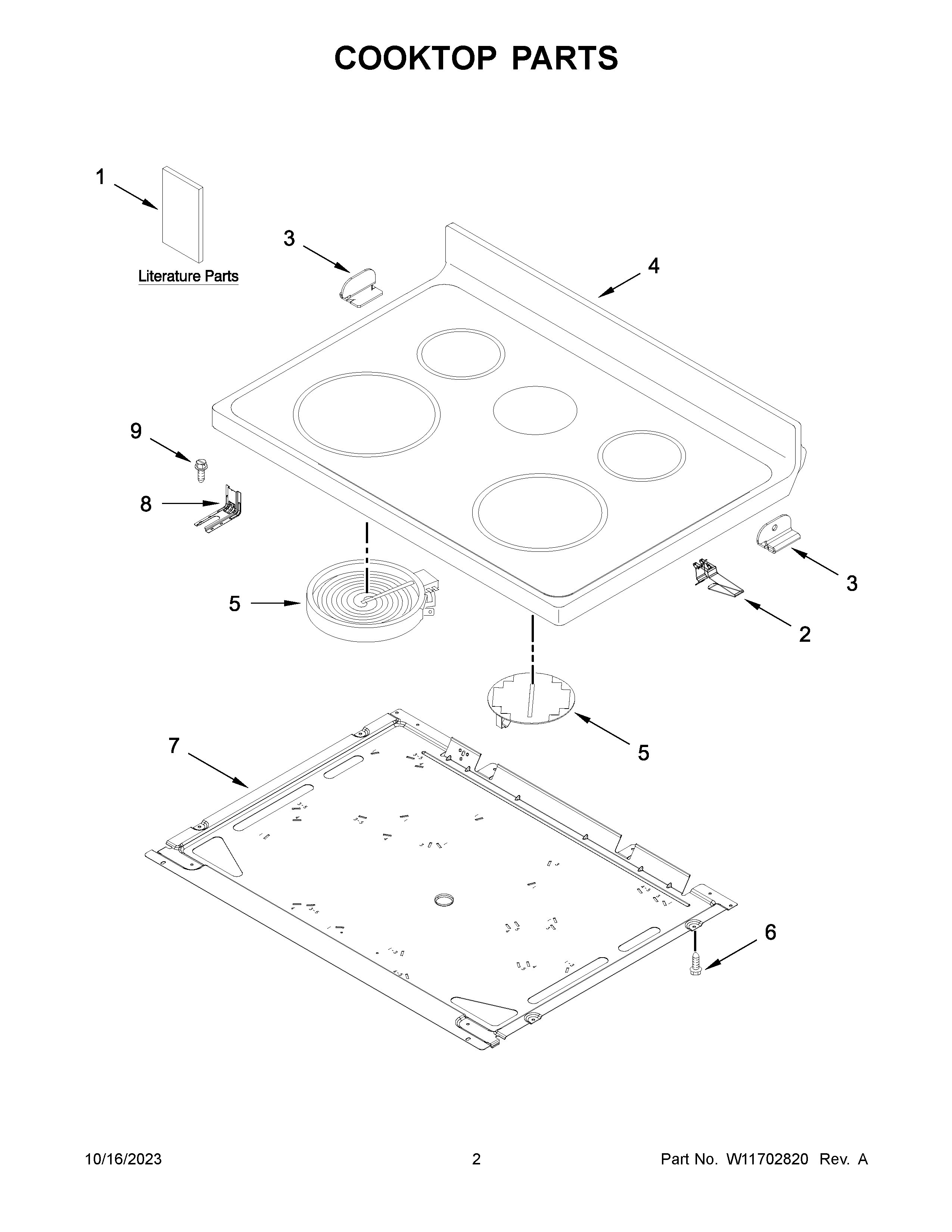

WFE525S0JV4 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNS-WIRE
NI	HARNESS, WARM ZONE
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	QUICK START GUIDE
1A	OWNERS MANUAL
1B	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11175876 Whirlpool Glass Maintop Assembly
5C	ELEMENT, WARM ZONE (CENTER)
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5B	W11047722 Whirlpool Radiant Surface Element
5A	ELMNT-SURF
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
