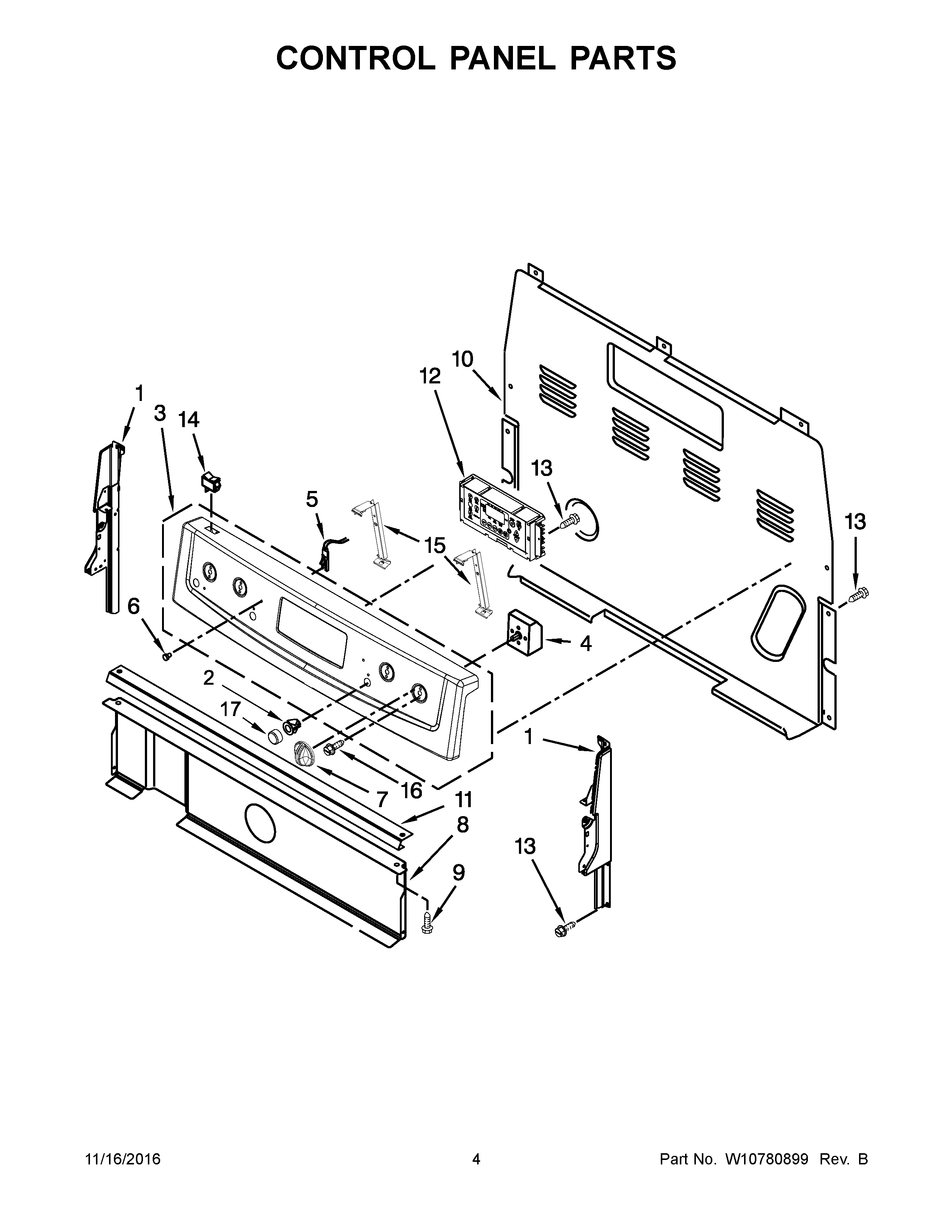

  • WFE530C0EB0 03 – CONTROL PANEL PARTS

WFE530C0EB0 03 – CONTROL PANEL PARTS

WFE530C0EB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219665 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1AW11219664 Whirlpool Endcap Panel
2AW10217758 Whirlpool Switch Bezel
2BBEZEL, KEEP WARM (STAINLESS)
2W10217760 Whirlpool Switch Bezel
3AW11233361 Whirlpool Control Panel
3BW11234450 Whirlpool Control Panel
3W11247340 Whirlpool Control Panel
4SWITCH-INF
4AWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7AW10836470 Whirlpool Knob Assembly
7W10853029 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196557 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12AW11122540 Whirlpool Electronic Control Board + Core
12BW11122539-includeCORE Whirlpool W11122539 Washer Electronic Control Board + Core
12W11122542-includeCORE Whirlpool W11122542 Refrigerator Electronic Control Board + Core
13SCREW
143149360 Whirlpool Light Switch
14AWP4314961 Whirlpool Lite Switch
15W11230932 Whirlpool Bracket Mounting
16WP3400882 Whirlpool Screw
179757492 Whirlpool Oven Push Button
17BW10918209 Whirlpool Push Button
17A9758491 Whirlpool Oven Push Button
