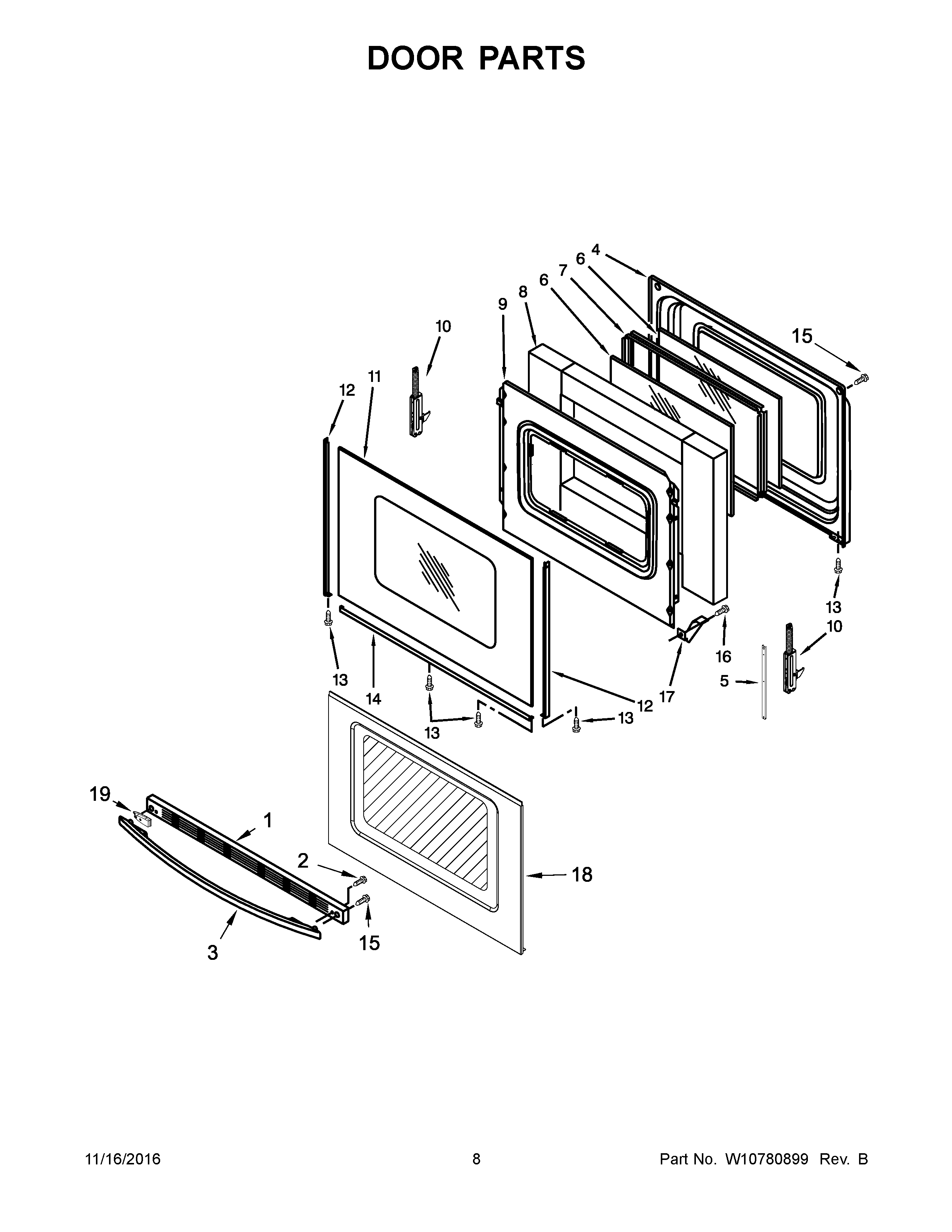

WFE530C0EB0 05 – DOOR PARTS

WFE530C0EB0 05 – DOOR PARTS

Written by

in

WFE530C0EB0 05 – DOOR PARTS

Products

PositionProduct
1ATRIM-VENT
1W10817433 Whirlpool Vent Trim
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3BWPW10618239 Whirlpool Door Handle
3AW10300490 Whirlpool Door Handle
3W10300489 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W11502236 Whirlpool Door Trim
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299227 Whirlpool Range Door Hinge
10AWPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409945 Whirlpool Glass Door
11AWPW10409946 Whirlpool Door Glass
12BW10761018 Whirlpool Dishwasher Left Door Trim
12CW10761014 Whirlpool Right Door Trim
12AWP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14AWP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
15W10777162 Whirlpool Screw
16WP3196175 Whirlpool Screw
17W10137382 Whirlpool Clip
18WPW10330077 Whirlpool Door Glass
19WPW10410341 Whirlpool Spacer
