WFE530C0EB1 03 – CONTROL PANEL PARTS
Written by
in

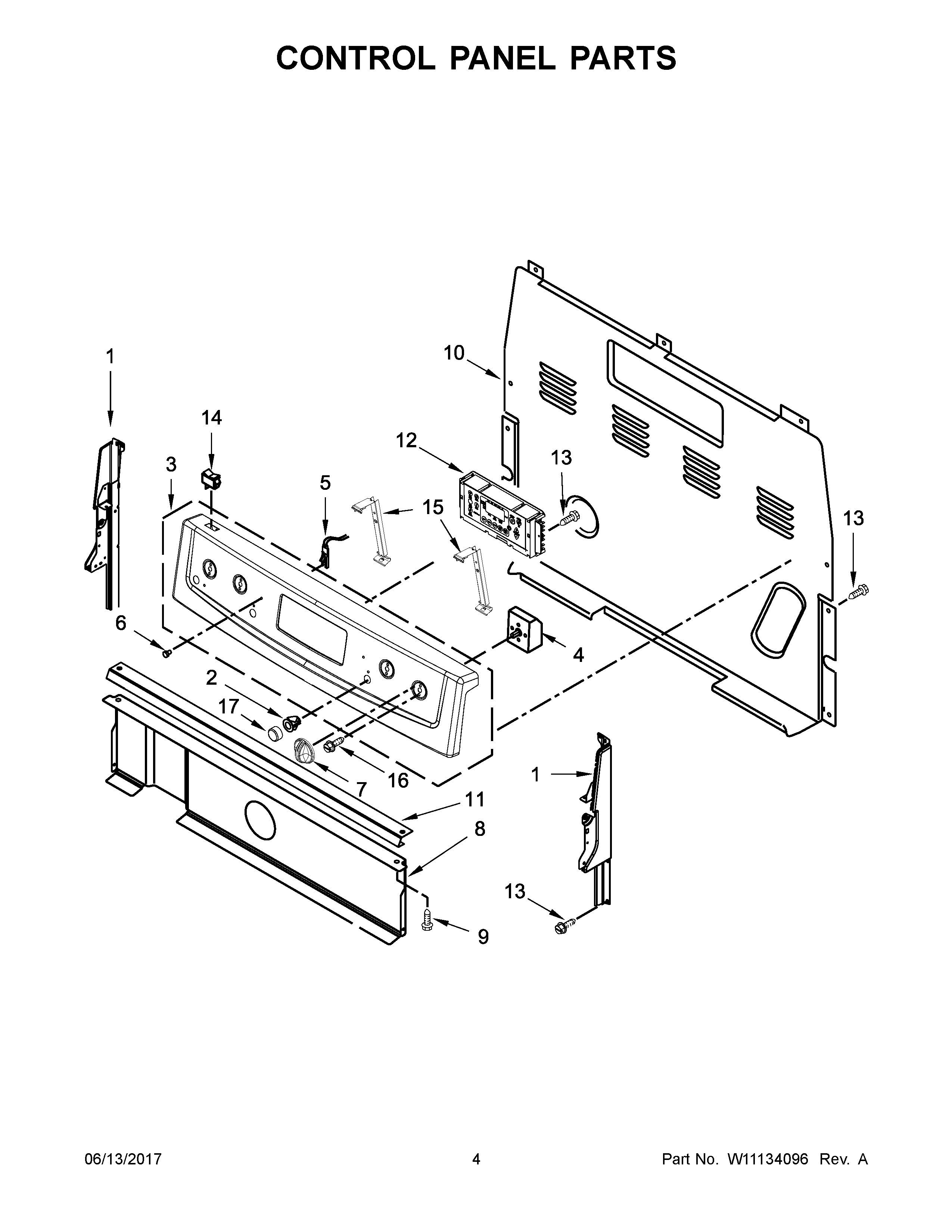

WFE530C0EB1 03 – CONTROL PANEL PARTS
Products
Position
Product
1C
W11219665 Whirlpool Panel Endcap
1B
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1A
W11219664 Whirlpool Endcap Panel
2A
W10217758 Whirlpool Switch Bezel
2B
BEZEL, KEEP WARM (STAINLESS)
2
W10217760 Whirlpool Switch Bezel
3A
W11233361 Whirlpool Control Panel
3B
W11234450 Whirlpool Control Panel
3
W11247340 Whirlpool Control Panel
4
SWITCH-INF
4A
WP3149404 Whirlpool Oven Surface Element Switch
5
WP8523265 Whirlpool Indicator Light
6
WP3196068 Whirlpool Light Lens
7A
W10836470 Whirlpool Knob Assembly
7
W10853029 Whirlpool Knob
8
W10134247 Whirlpool Heat Shield
9
WP3196557 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
W10525121 Whirlpool Control Bracket
12A
W11122540 Whirlpool Electronic Control Board + Core
12B
W11122539-includeCORE Whirlpool W11122539 Washer Electronic Control Board + Core
12
W11122542-includeCORE Whirlpool W11122542 Refrigerator Electronic Control Board + Core
13
SCREW
14
3149360 Whirlpool Light Switch
14A
WP4314961 Whirlpool Lite Switch
15
W11230932 Whirlpool Bracket Mounting
16
WP3400882 Whirlpool Screw
17
9757492 Whirlpool Oven Push Button
17B
W10918209 Whirlpool Push Button
17A
9758491 Whirlpool Oven Push Button
←
