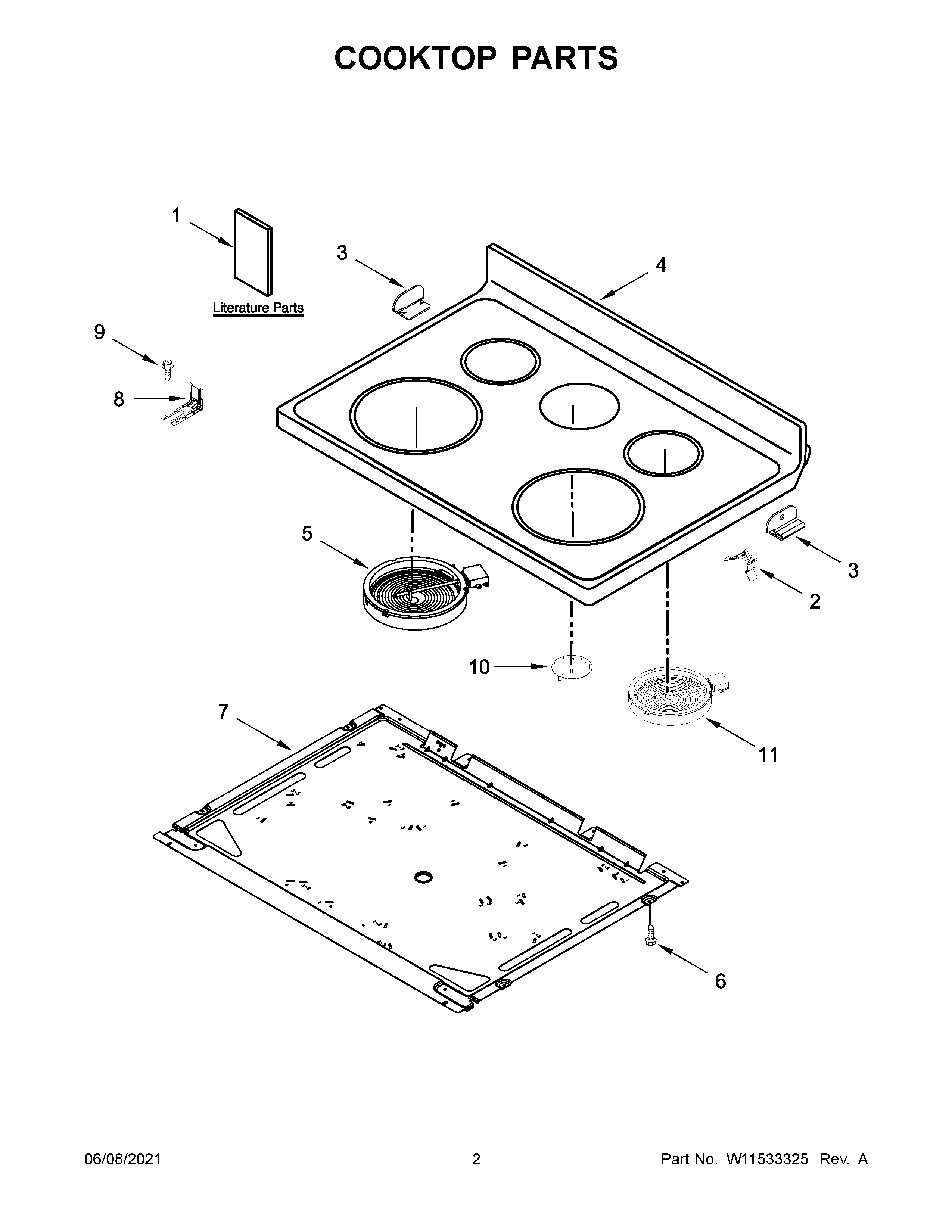

WFE535S0JZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172528 Whirlpool Harness Wire
NI	W11134845 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	W11134592 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W11675846 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1A	USE AND CARE GUIDE
1B	TECH SHEET
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11156895 Whirlpool Cooktop Maintop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
