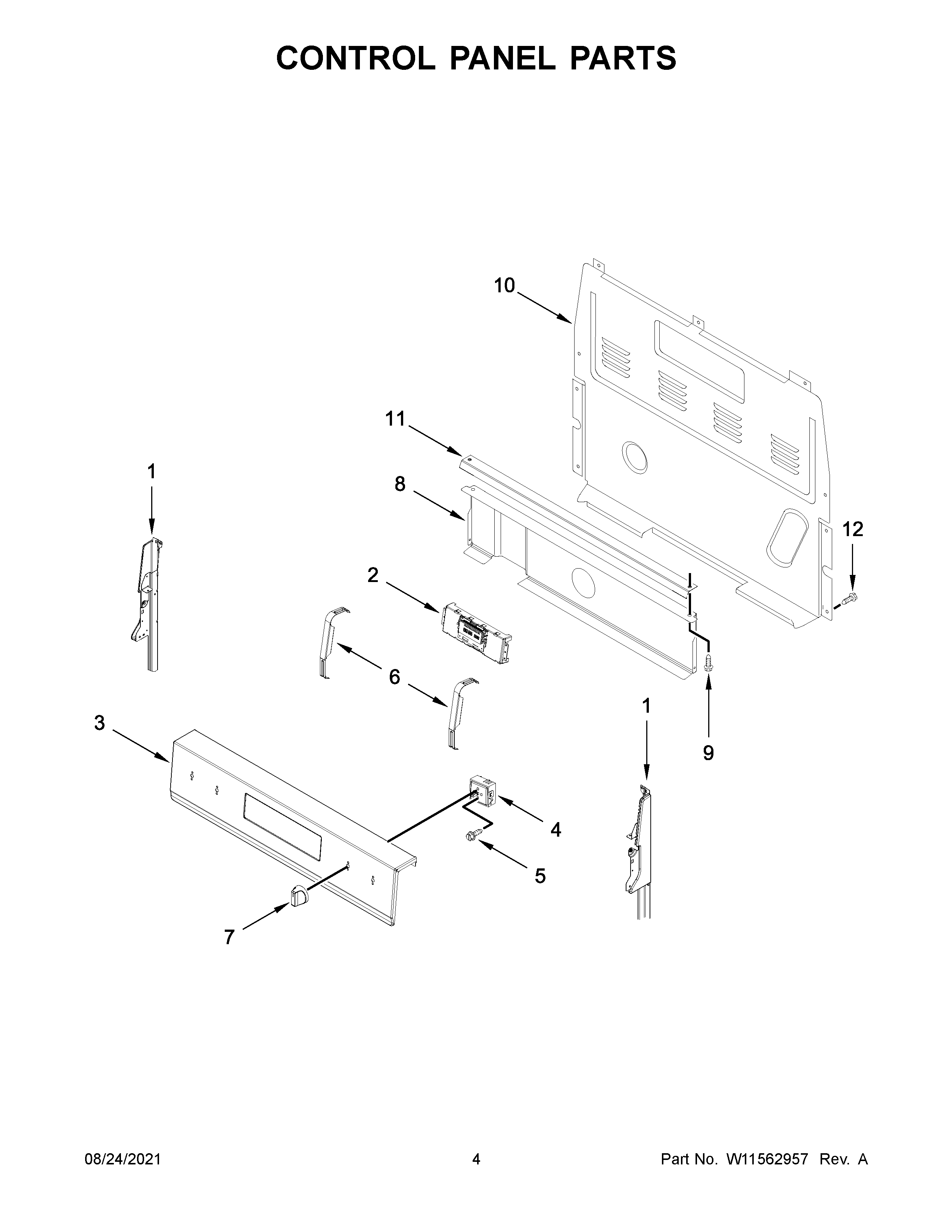

WFE535S0LZ0 03 – CONTROL PANEL PARTS

WFE535S0LZ0 03 – CONTROL PANEL PARTS

Written by

in

WFE535S0LZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W11548749-includeCORE Whirlpool W11548749 Refrigerator Electronic Control Board
3W11158166 Whirlpool Control Panel Assembly
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5SCREW
6W11230932 Whirlpool Bracket Mounting
7W11158168 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WP3196557 Whirlpool Screw
