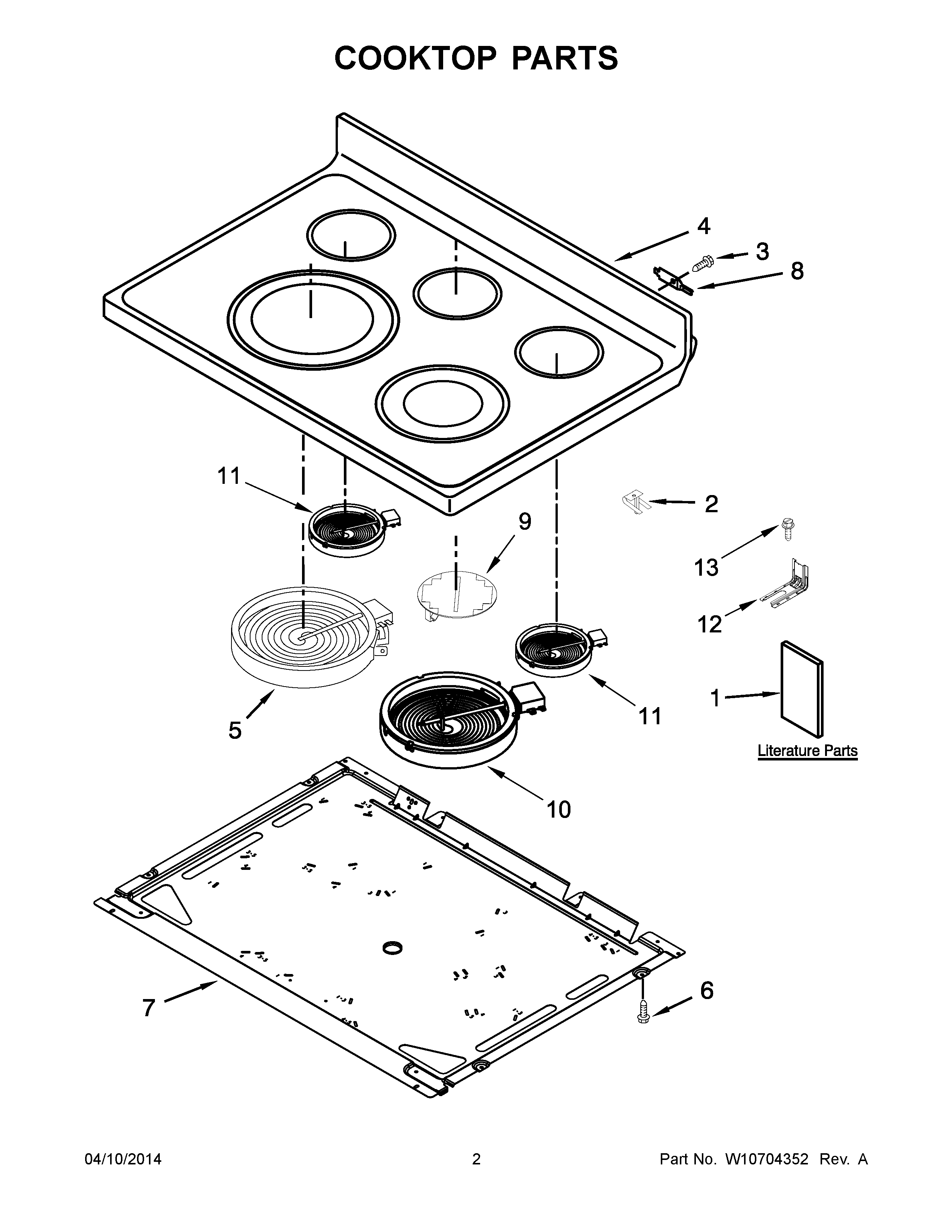

WFE540H0AB1 02 – COOKTOP PARTS

WFE540H0AB1 02 – COOKTOP PARTS

Written by

in

WFE540H0AB1 02 – COOKTOP PARTS

Products

PositionProduct
1OWNERS MANUAL
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1QUICK START GUIDE
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472036 Whirlpool Cooktop
4W10472035 Whirlpool Cooktop
5W10823727 Whirlpool Stove Right Front Surface Element
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
10W11517959 Whirlpool Electric Range Radiant Surface Element
11ELMNT-SURF
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
