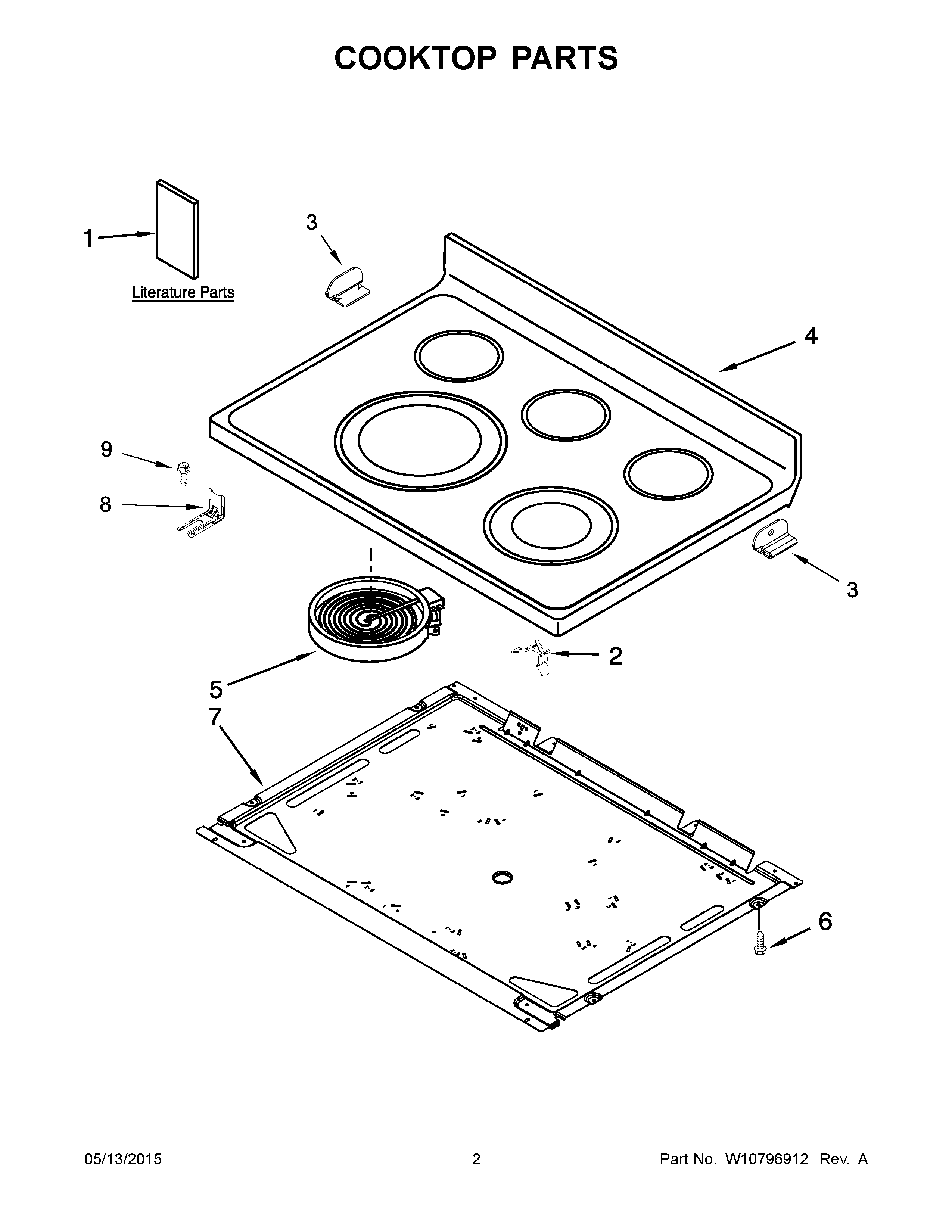

WFE540H0EB0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134549 Whirlpool Wire Harness
NI	W11134594 Whirlpool Wire Harness
NI	W11172424 Whirlpool Wire Harness
NI	W11134596 Whirlpool Wire Harness
NI	W11134550 Whirlpool Wire Harness
1A	USE AND CARE GUIDE
1C	QUICK START GUIDE
1D	SAFER COOKING TIPS (ENGLISH
1B	TECH SHEET (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W10472036 Whirlpool Cooktop
4A	W10472035 Whirlpool Cooktop
5A	ELMNT-SURF
5C	W11047668 Whirlpool Surface Element
5	W10823727 Whirlpool Stove Right Front Surface Element
5B	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
