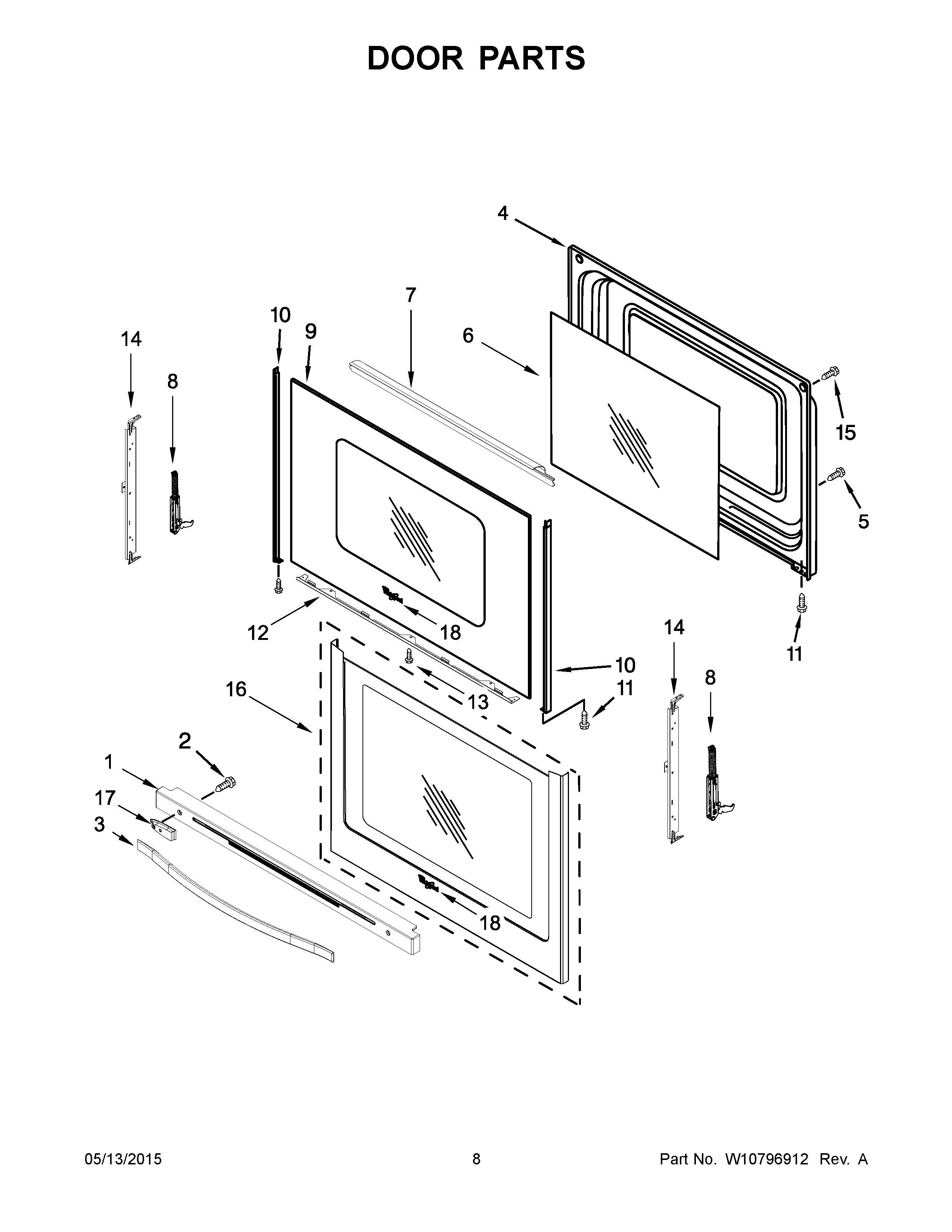

WFE540H0EE0 05 – DOOR PARTS

Products

Position	Product
1A	W10294855 Whirlpool Vent Trim
1B	W10335333 Whirlpool Vent Trim
1	WPW10335331 Whirlpool Trim Vent
2	WPW10465148 Whirlpool Screw
3B	WPW10618239 Whirlpool Door Handle
3	W10300489 Whirlpool Door Handle
3A	W10300490 Whirlpool Door Handle
4	WPW10297318 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WPW10300487 Whirlpool Door Glass
7	W10294853 Whirlpool Mounting Bracket
8	WPW10440013 Whirlpool Door Hinge
9	WPW10333987 Whirlpool Door Glass
9A	WPW10333988 Whirlpool Door Glass
9B	WPW10289141 Whirlpool Door Glass
9C	WPW10289142 Whirlpool Glass Door
10A	W10334004 Whirlpool Door Trim
10	W10334003 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12A	W10334031 Whirlpool Glass Bracket
12	WPW10333990 Whirlpool Glass Bracket
13	W10777162 Whirlpool Screw
14	W11116956 Whirlpool Support Bracket
15	WPW10317886 Whirlpool Screw
16	WPW10289144 Whirlpool Door Glass
17B	WPW10254688 Whirlpool Spacer
17	WPW10429492 Whirlpool Spacer
17A	WPW10410341 Whirlpool Spacer
18A	W11178521 Whirlpool Dishwasher Nameplate
