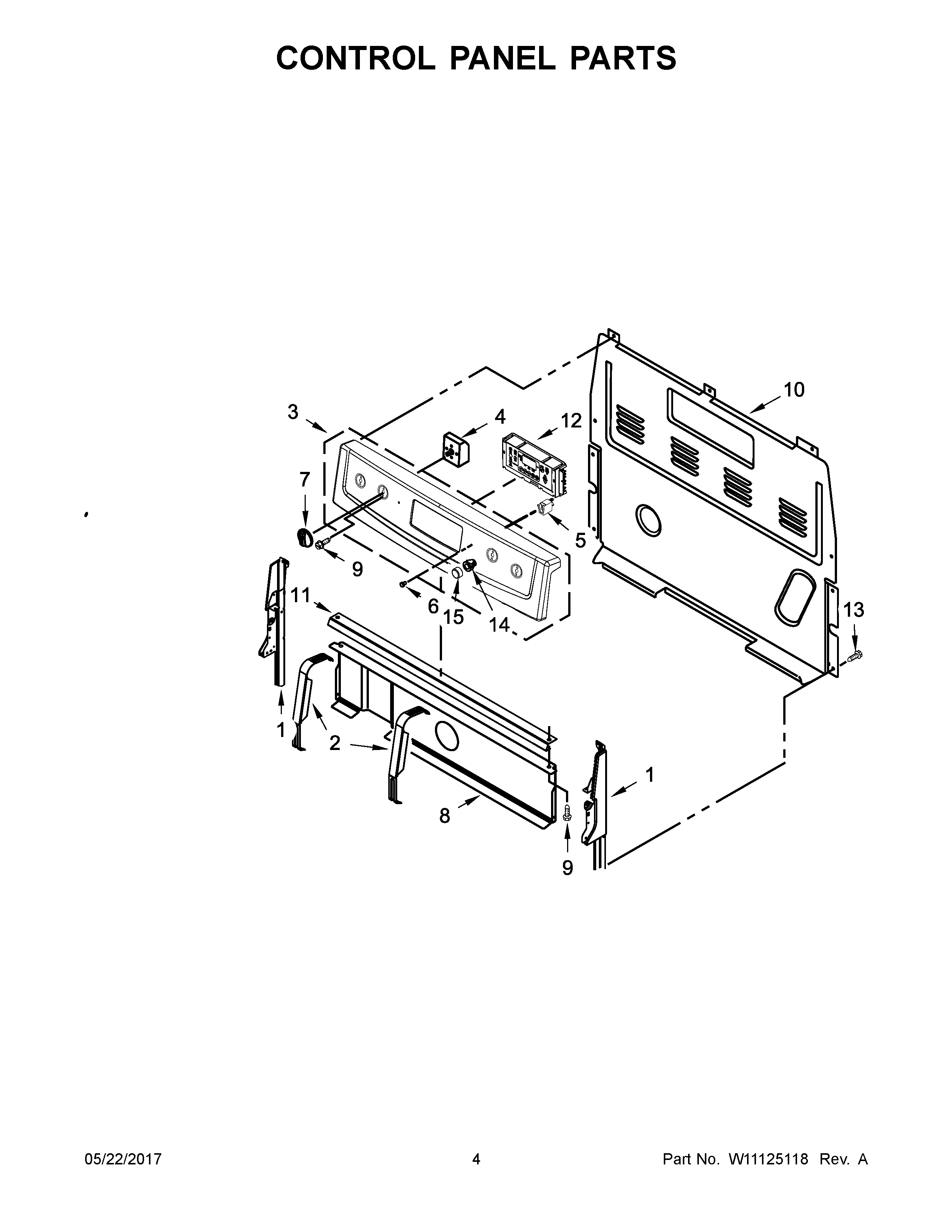

WFE540H0EE1 03 – CONTROL PANEL PARTS

WFE540H0EE1 03 – CONTROL PANEL PARTS

Written by

in

WFE540H0EE1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219665 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1AW11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3PANEL, BACKGUARD (WHITE)
3AW11233269 Whirlpool Control Panel
3BPANEL, BACKGUARD (STAINLESS)
4AW10911303 Whirlpool Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7AW10676216 Whirlpool Knob
7BW10854249 Whirlpool Knob
7W10676217 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12BWPW10586737-includeCORE Whirlpool WPW10586737 Refrigerator Electronic Control Board + Core
12AWPW10586736-includeCORE Whirlpool WPW10586736 Electronic Control Board + Core
12WPW10586735-includeCORE Whirlpool WPW10586735 Washer Electronic Control Board + Core
13SCREW
14W10217760 Whirlpool Switch Bezel
14AW10217758 Whirlpool Switch Bezel
14BBEZEL, KEEP WARM (STAINLESS)
15BW10918209 Whirlpool Push Button
15A9758491 Whirlpool Oven Push Button
159757492 Whirlpool Oven Push Button
