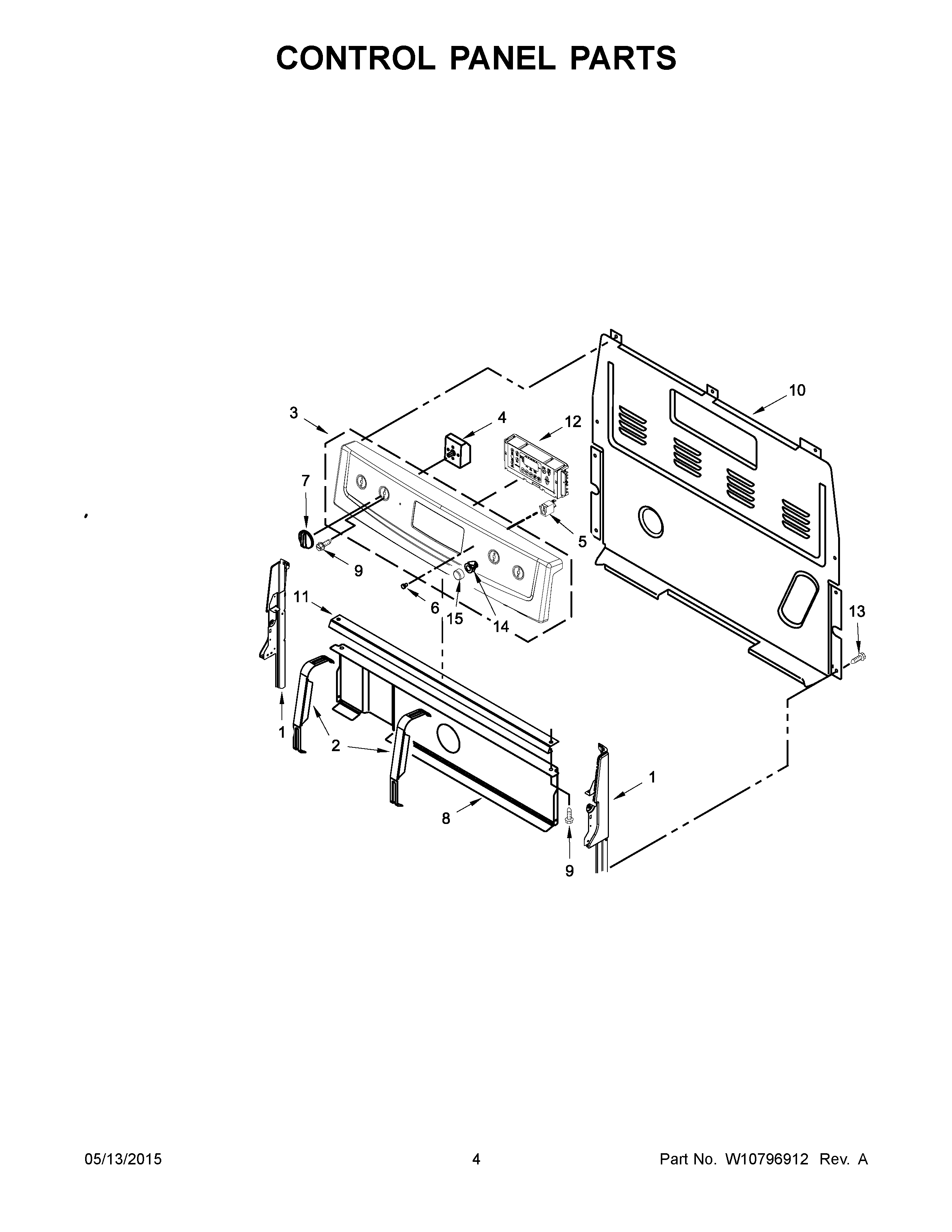

WFE540H0ES0 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219665 Whirlpool Panel Endcap
1A	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1B	W11219664 Whirlpool Endcap Panel
2	W11230932 Whirlpool Bracket Mounting
3	PANEL, BACKGUARD (WHITE)
3A	W11233269 Whirlpool Control Panel
3B	PANEL, BACKGUARD (STAINLESS)
4A	W10911303 Whirlpool Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7A	W10676216 Whirlpool Knob
7B	W10854249 Whirlpool Knob
7	W10676217 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12B	WPW10586737-includeCORE Whirlpool WPW10586737 Refrigerator Electronic Control Board + Core
12A	WPW10586736-includeCORE Whirlpool WPW10586736 Electronic Control Board + Core
12	WPW10586735-includeCORE Whirlpool WPW10586735 Washer Electronic Control Board + Core
13	SCREW
14	W10217760 Whirlpool Switch Bezel
14A	W10217758 Whirlpool Switch Bezel
14B	BEZEL, KEEP WARM (STAINLESS)
15B	W10918209 Whirlpool Push Button
15A	9758491 Whirlpool Oven Push Button
15	9757492 Whirlpool Oven Push Button
