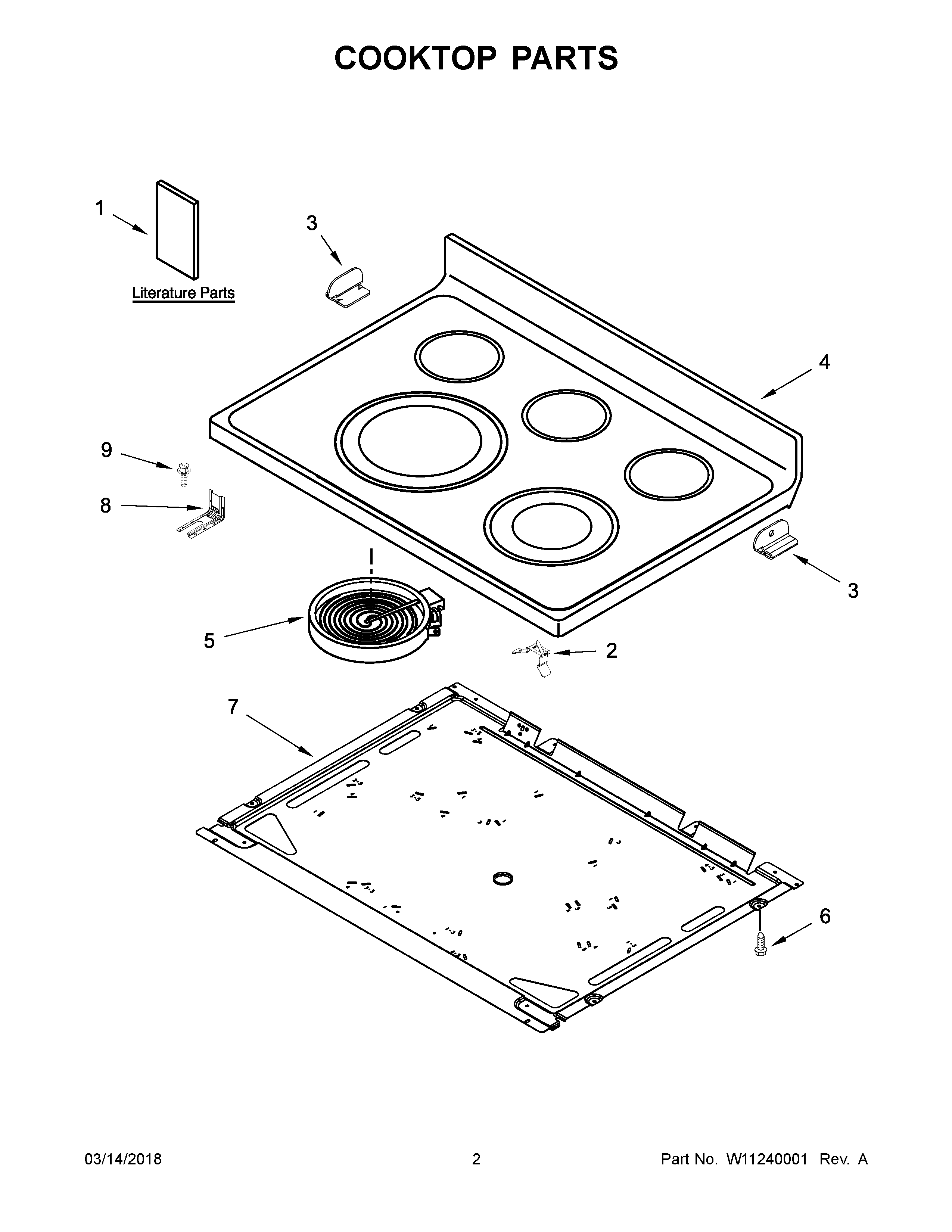

WFE540H0ES2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134549 Whirlpool Wire Harness
NIW11134594 Whirlpool Wire Harness
NIW11172424 Whirlpool Wire Harness
NIW11134596 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
1BTECH SHEET (ENGLISH)
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1CQUICK START GUIDE
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W10472035 Whirlpool Cooktop
5AELMNT-SURF
5BW11517959 Whirlpool Electric Range Radiant Surface Element
5CW11047668 Whirlpool Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
