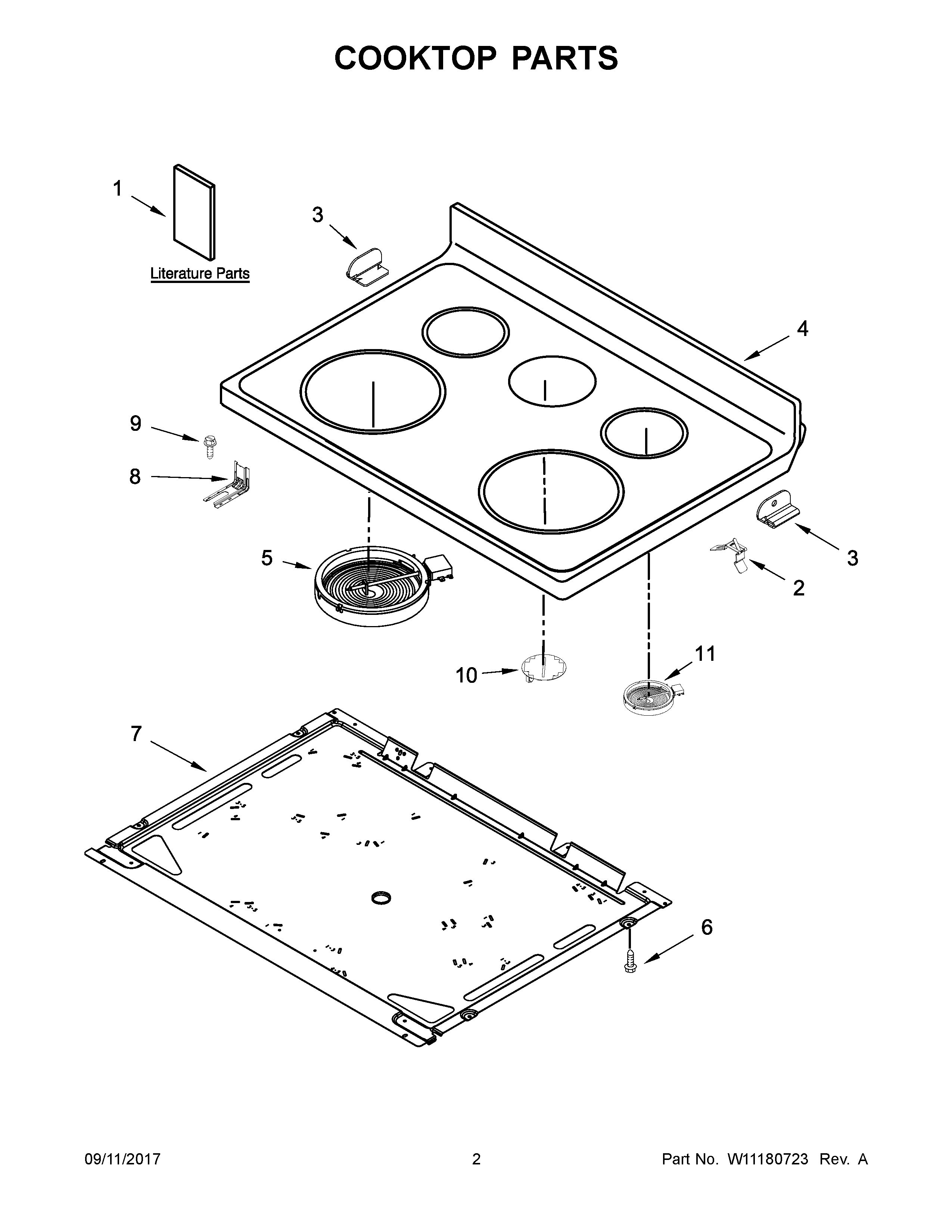

WFE550S0HB0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134845 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	W11134592 Whirlpool Wire Harness
NI	W11616882 Whirlpool Range Wire Harness
NI	W11675846 Whirlpool Wire Harness
NI	W10465644 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1D	SAFER COOKING TIPS (ENGLISH
1C	WIRING DIAGRAM
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4A	W11183715 Whirlpool Cooktop
4	W11183708 Whirlpool Maintop Assembly
5A	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
