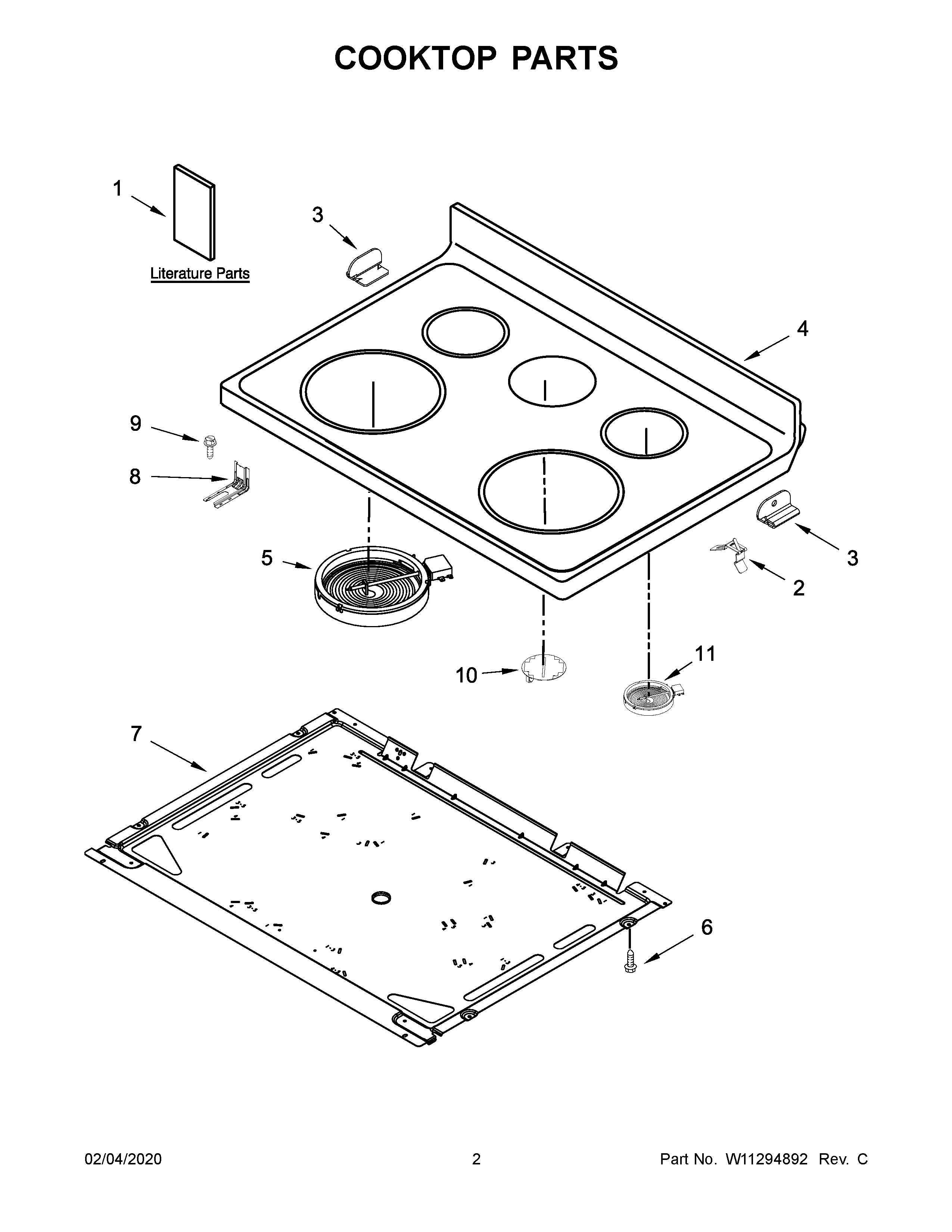

WFE550S0HV1 02 – COOKTOP PARTS
Written by
in
WFE550S0HV1 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11172528 Whirlpool Harness Wire
NI
W11134845 Whirlpool Wire Harness
NI
W10183541 Whirlpool Clip Assembly
NI
W11134592 Whirlpool Wire Harness
NI
W11675846 Whirlpool Wire Harness
NI
W11616882 Whirlpool Range Wire Harness
NI
3400964 Whirlpool Oven Clip
1A
USE AND CARE GUIDE
1B
SHEET, TECH
1C
WIRING DIAGRAM
1
INSTRUCTIONS, INSTALLATION
2
WPW10225448 Whirlpool Spring Assembly
3A
W10607642 Whirlpool Clip
3
W10607641 Whirlpool Clip
4
W11183708 Whirlpool Maintop Assembly
5A
W11517959 Whirlpool Electric Range Radiant Surface Element
5
W10823727 Whirlpool Stove Right Front Surface Element
6
WP3196557 Whirlpool Screw
7
PAN
8
W11447673 Whirlpool Range Tip Anchor
9
SCREW, ANTI-TIP KIT
10
W11041453 Whirlpool Surface Element
11
ELMNT-SURF
←
