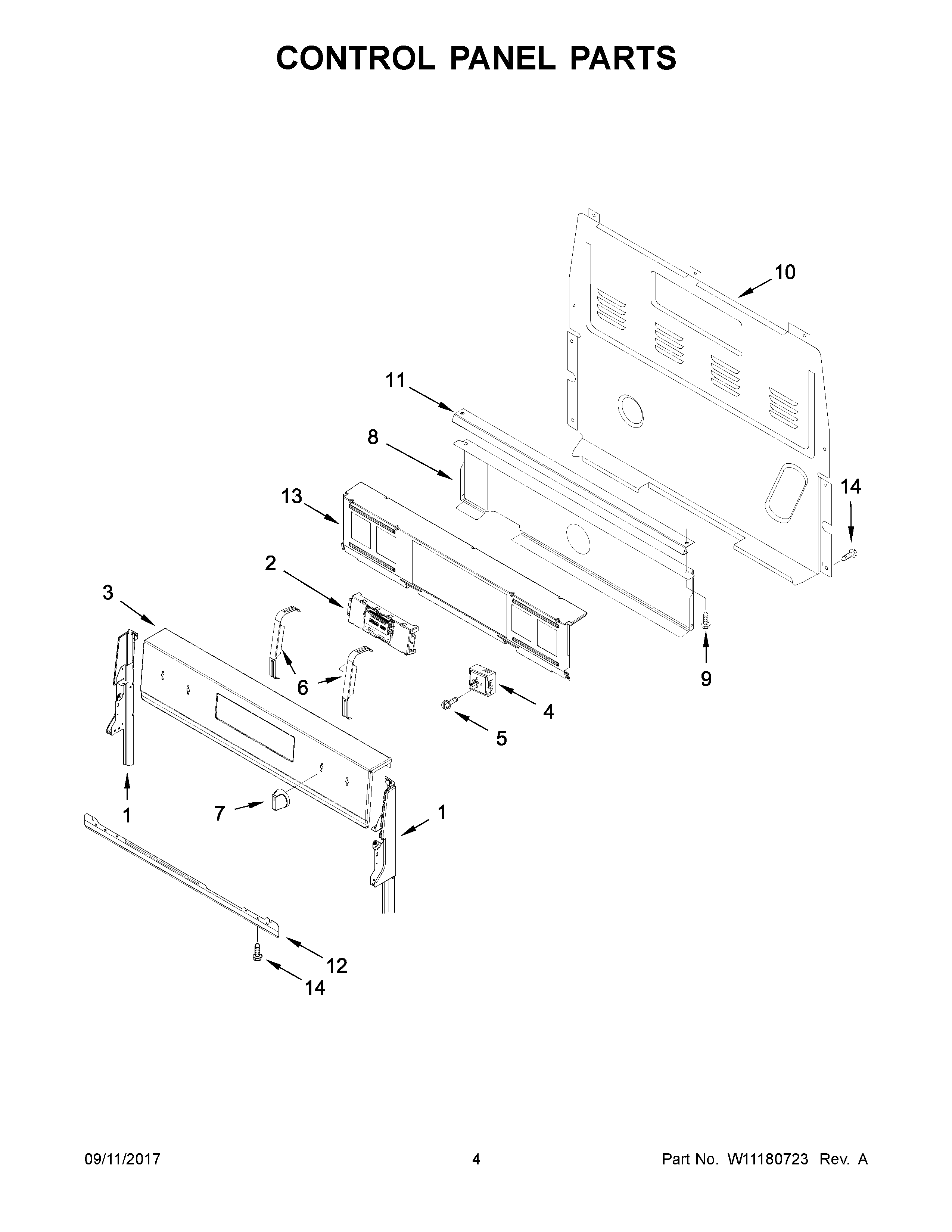

WFE550S0HW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	ENDCAP (WHITE (LEFT))
1C	W11259700 Whirlpool Panel End Cap
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2A	W11546095-includeCORE Whirlpool W11546095 Washer Electronic Control Board + Core
2	W11528249 Whirlpool Control Board + Core
3A	W11182818 Whirlpool Control Panel
3	W11182819 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	SCREW
6	BRACKET, CONTROL
7A	W11158173 Whirlpool Knob Assembly
7	W11158169 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12A	W11051311 Whirlpool Support Bracket
12	W11443964 Whirlpool Support Bracket
13	W10901802 Whirlpool Mounting Bracket
14	WP3196557 Whirlpool Screw
