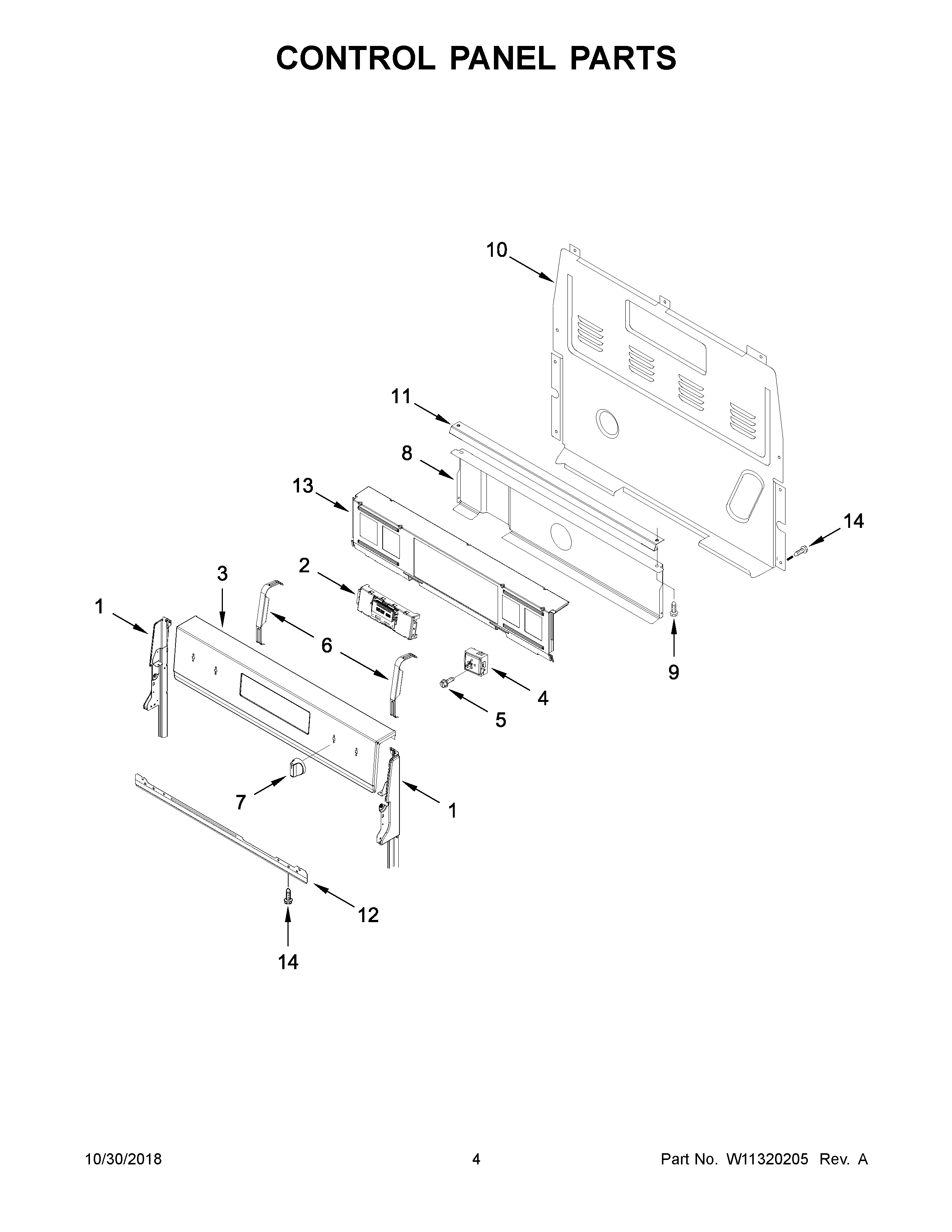

WFE550S0HW1 03 – CONTROL PANEL PARTS

WFE550S0HW1 03 – CONTROL PANEL PARTS

Written by

in

WFE550S0HW1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11259700 Whirlpool Panel End Cap
1BENDCAP (WHITE (LEFT))
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2W11528249 Whirlpool Control Board + Core
2AW11546095-includeCORE Whirlpool W11546095 Washer Electronic Control Board + Core
3AW11182818 Whirlpool Control Panel
3W11182819 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5SCREW
6BRACKET, CONTROL
7AW11158173 Whirlpool Knob Assembly
7W11158169 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12AW11051311 Whirlpool Support Bracket
12W11443964 Whirlpool Support Bracket
13W10901802 Whirlpool Mounting Bracket
14WP3196557 Whirlpool Screw
