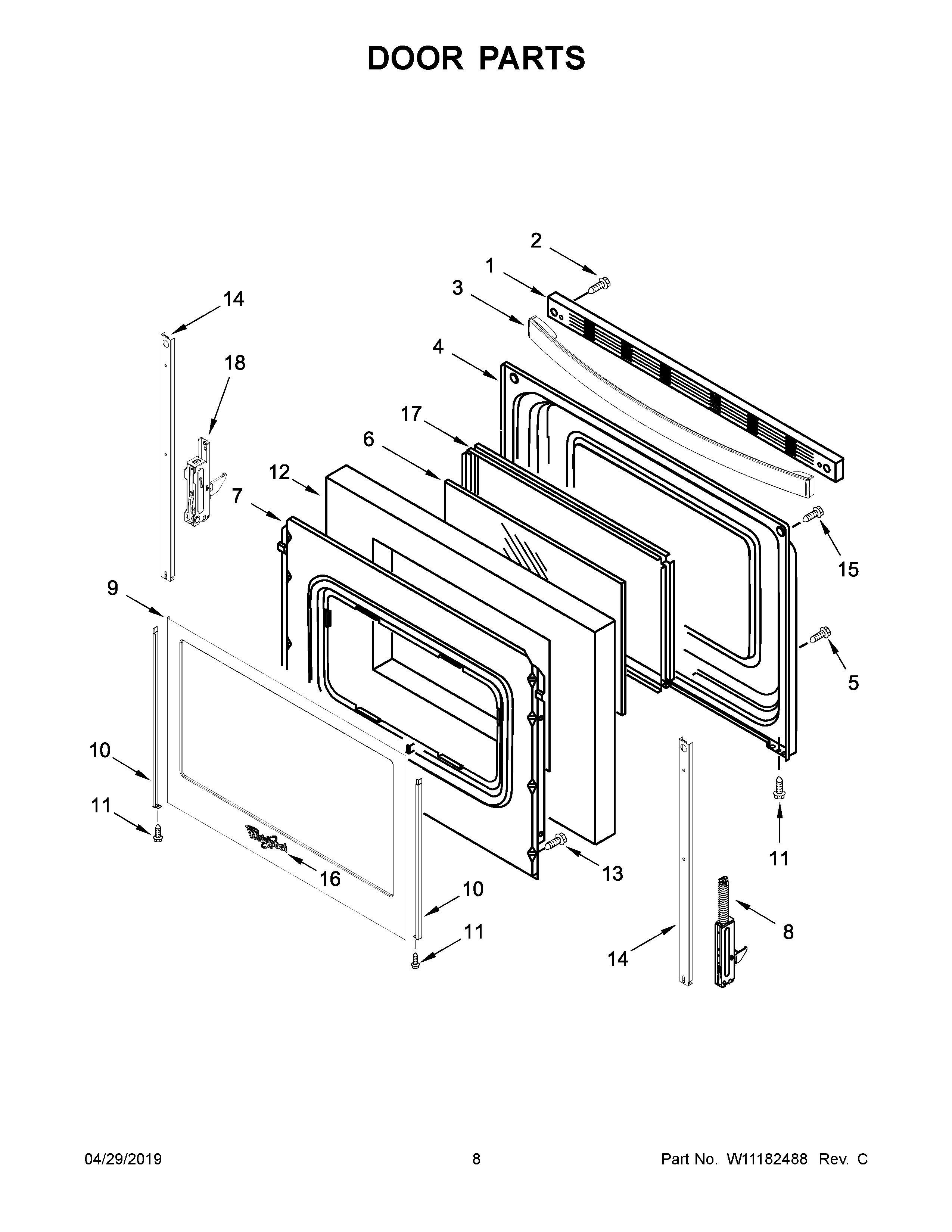

WFE550S0HZ0 05 – DOOR PARTS

WFE550S0HZ0 05 – DOOR PARTS

Written by

in

WFE550S0HZ0 05 – DOOR PARTS

Products

PositionProduct
1ATRIM-VENT
1W11096161 Whirlpool Vent Trim
2W10831019 Whirlpool Stove Door Screw
3AW11159497 Whirlpool Door Handle
3W11398742 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
9AW11247684 Whirlpool Door Glass
9W11249559 Whirlpool Door Glass
10AW10761014 Whirlpool Right Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11WP355214 Whirlpool Screw
12WPW10278991 Whirlpool Insulation
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11178521 Whirlpool Dishwasher Nameplate
17WPW10316950 Whirlpool Window Frame
18WPW10299227 Whirlpool Range Door Hinge
