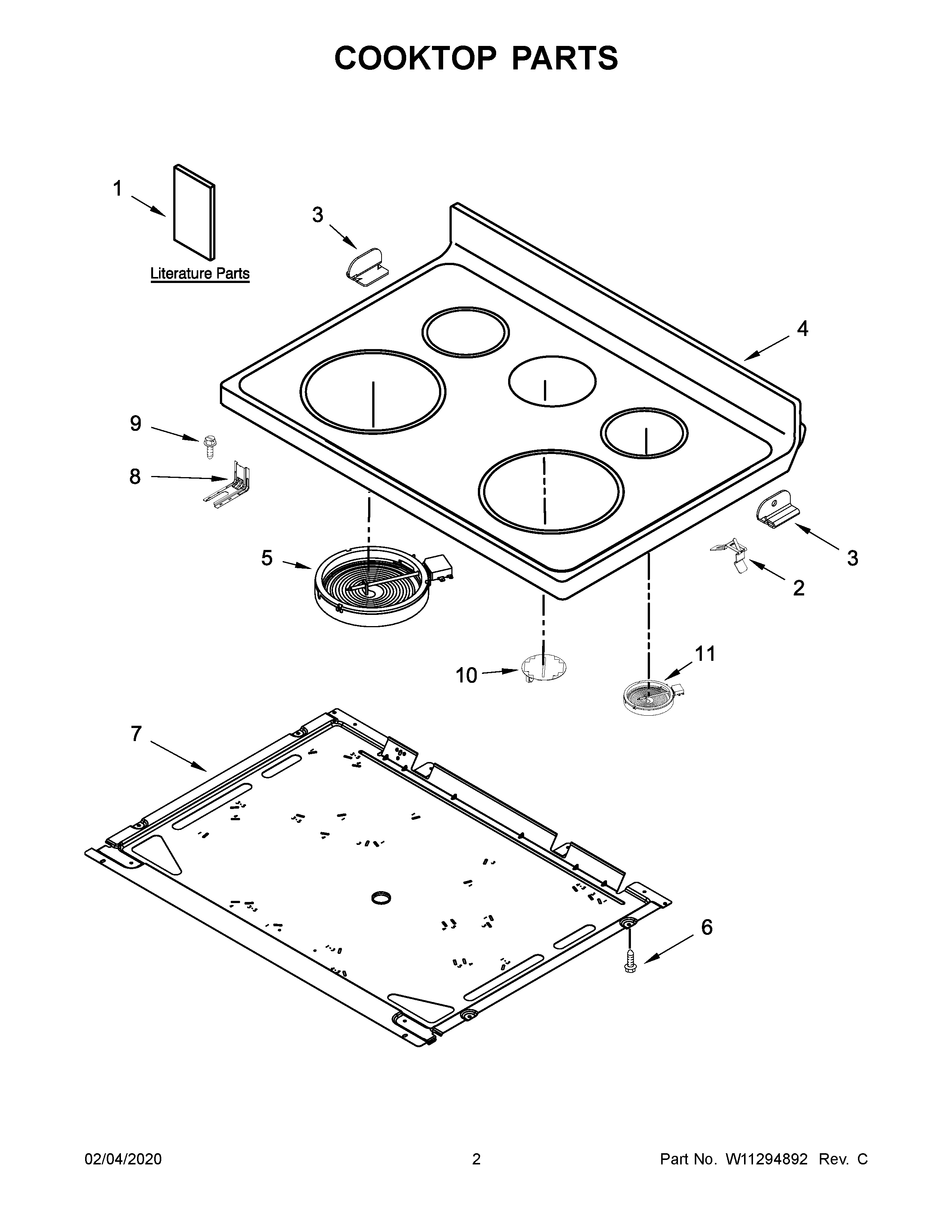

WFE550S0HZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172528 Whirlpool Harness Wire
NI	W11134845 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	W11134592 Whirlpool Wire Harness
NI	W11675846 Whirlpool Wire Harness
NI	W11616882 Whirlpool Range Wire Harness
NI	3400964 Whirlpool Oven Clip
1A	USE AND CARE GUIDE
1B	SHEET, TECH
1C	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11183708 Whirlpool Maintop Assembly
5A	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W10823727 Whirlpool Stove Right Front Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
