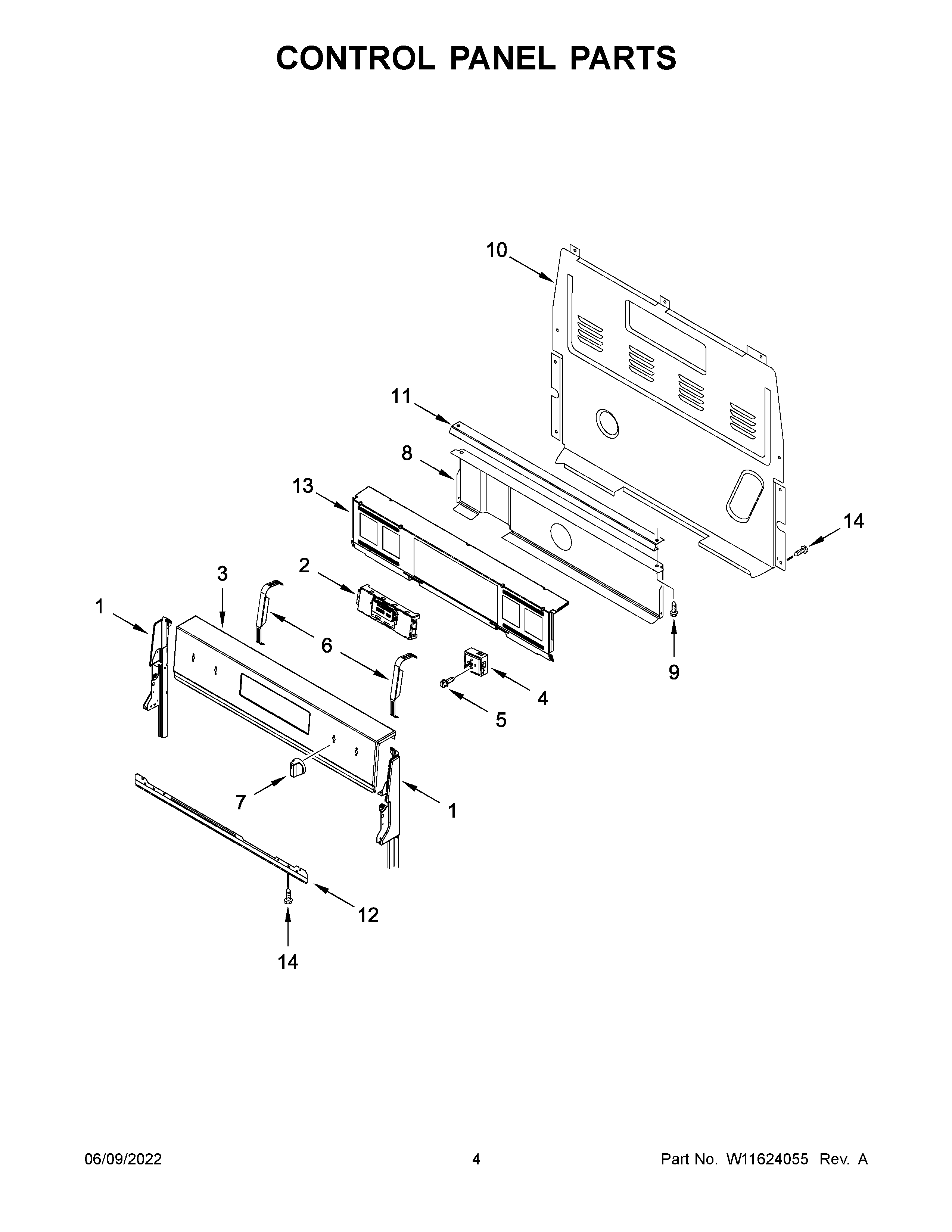

WFE550S0LB2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11213290 Whirlpool Console
1A	W11213292 Whirlpool Endcap Panel
2	W11548749-includeCORE Whirlpool W11548749 Refrigerator Electronic Control Board
3	W11182819 Whirlpool Control Panel
4	SWITCH-INF
4A	WP3149404 Whirlpool Oven Surface Element Switch
5	SCREW
6	BRACKET, CONTROL
7	W11158169 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11443964 Whirlpool Support Bracket
13	W10901802 Whirlpool Mounting Bracket
14	WP3196557 Whirlpool Screw
