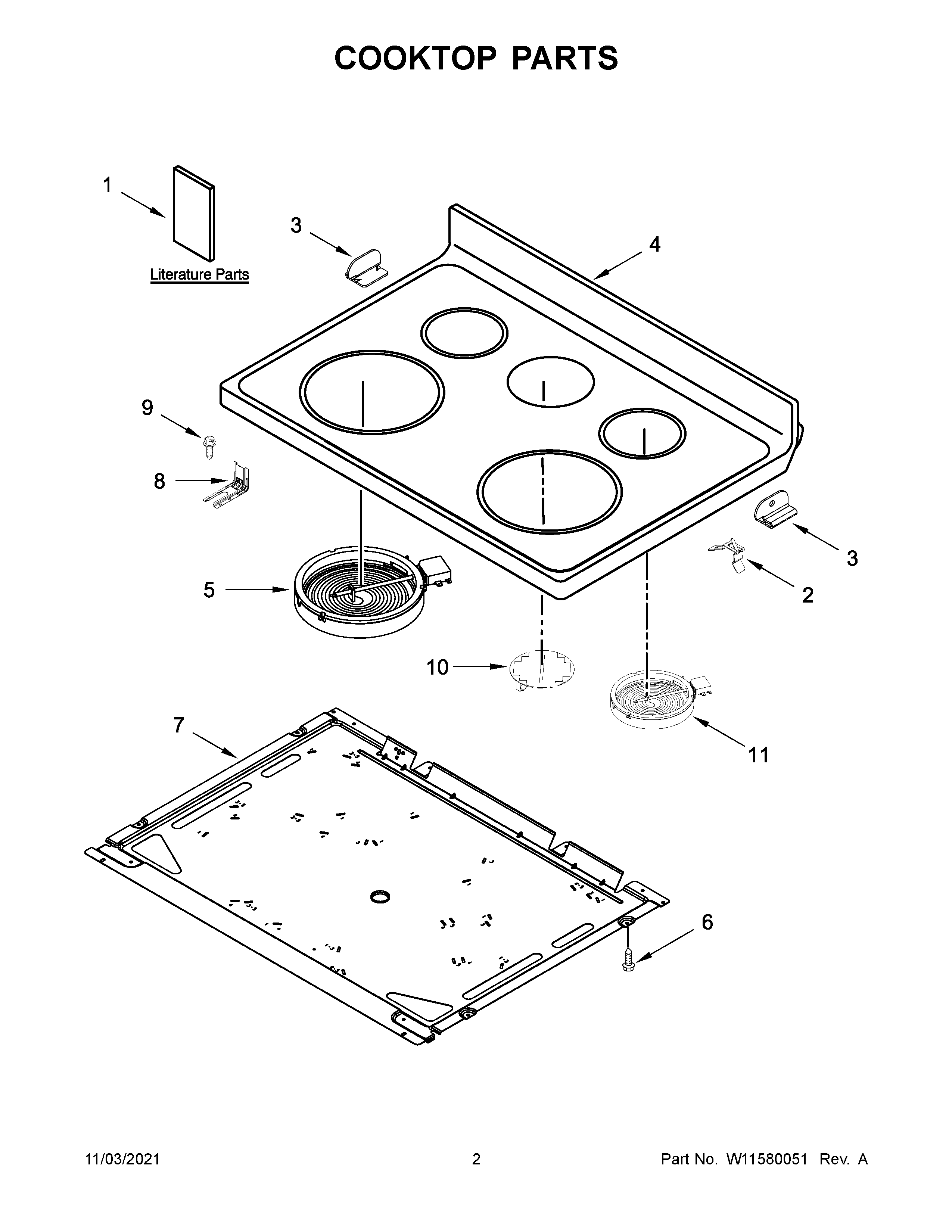

WFE550S0LV2 02 – COOKTOP PARTS

WFE550S0LV2 02 – COOKTOP PARTS

Written by

in

WFE550S0LV2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11172528 Whirlpool Harness Wire
NIW11134845 Whirlpool Wire Harness
NIW10183541 Whirlpool Clip Assembly
NIW11134592 Whirlpool Wire Harness
NIHARNS-WIRE
NIW11675846 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
1OWNERS MANUAL
1AQUICK START GUIDE
1BTECH SHEET
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11183708 Whirlpool Maintop Assembly
5AW11517959 Whirlpool Electric Range Radiant Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10W11041453 Whirlpool Surface Element
11ELMNT-SURF
